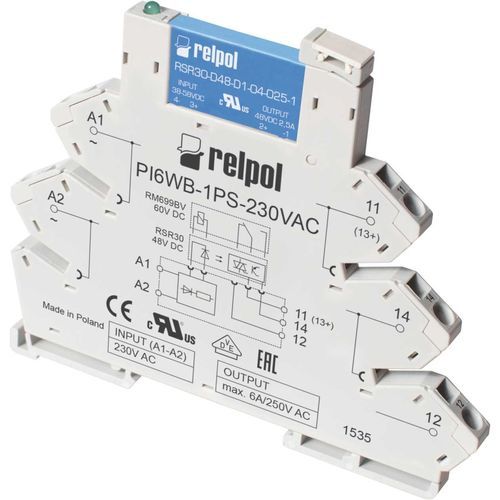

24 Vdc solid state relay PIR6WB-1PS series

ACminiatureslim

Output: 1CO, triac, transistor; input voltage DC or AC/DC; width 6,2 mm; 35 mm rail mount; (set: socket PI6WB-1PS + relay RM699BV or RSR30) Interface relay PIR6WB-1PS-... consists of: - spring terminals universal socket, with electronic PI6WB-1PS-..., - miniature operational relay - electromagnetic RM699BV or solid state RSR30 Contact data   Number and type of contacts  1 CO (R) , 1 CO (R01)  Rated / max. switching voltage (AgSnO2)   250 V DC / 400 V AC  Rated load (capacity) (AgSnO2)   AC1: 6 A /250 V AC;  DC1: 6 A /24 V DC;  0,15 A/ 250 V DC Output circuit (RSR30) - output data  Rated continuous output current     Triak (T)  AC1: 1A Tranzystor (C)  DC1: 1A   Tranzystor (O)  DC1: 2A   Input control circuit  Rated voltage  50/60 Hz AC: 230 V    DC: 6, 12, 24, 36, 48, 60 V; AC: 50/60 Hz AC/DC: 24, 42, 115, 230 V; General data  Electrical life resistive    AC1 > 0,5 x 105  6 A, 250 V AC Mechanical life (cycles) > 107
