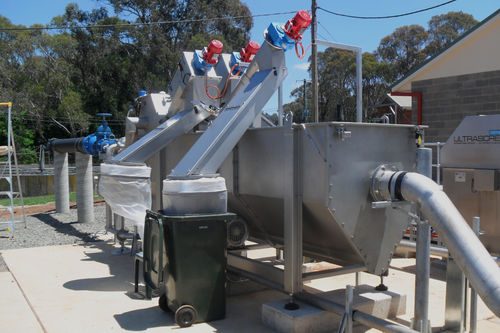

Wastewater treatment plant RCS2

Multipurpose Combined systems. Systems for screening, degritting and degreasing suitable for low and mid-range flowrate. The mechanical pre-treatment is the key to every efficient municipal and industrial waste water treatment plant. It is vital to remove most of the screenings and non-organic material from the waste stream to prevent clogging, blockages and sedimentation in the following steps. The comby systems RCS allow to efficiently remove the screenings by means of the fine screen located at the inlet, settle and remove the grit and sand free of fecal material in the de-gritting chamber and float the grease and oils to be removed by the skimmer. Screen and dewater De-grit De-grease The broad range allows to have a suitable unit for most cases. From 3 mm to 12 mm Flowrate range: From 4 to 200 l/s The units may be equipped with the REMSPRAY washing system that allows to remove a large portion of the organics bound to the screenings. For a more effective screenings washing we suggest to combine the screen with the RHW R.E.M. High-pressure Washer Compactor.
