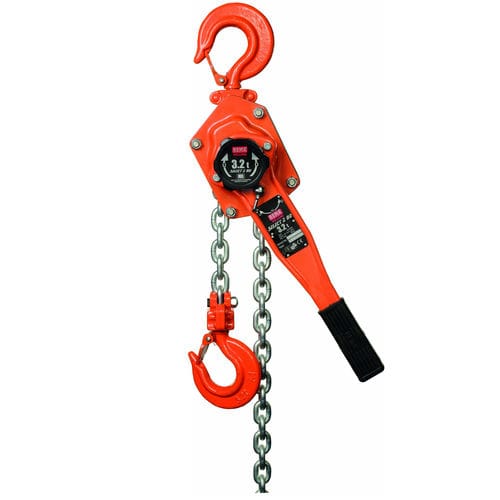

Lever chain hoist S2OD series

lever chain hoist
lever chain hoist
lever chain hoist
lever chain hoist
lever chain hoist
lever chain hoist
lever chain hoist
Add to favorites
Compare this product


Characteristics

Operation
lever
Capacity

Max.: 9,000 kg
(19,841.6 lb)

Min.: 250 kg
(551.2 lb)

Lifting height

1.5 m
(4'11" )

Description

The REMA Select 2 OD ratchet hoist with serial built-in overload device, except 250 kg *, for safe working during lifting, pulling, tensioning or lashing. Properties •The innovative overload device ensures safer operation of the hoist. •Overload device system makes it possible to lower the load in a controlled way. •Overload device prevents dangerous overloading of the hoist and construction. •Low leverage at full load due to bearing. •Equipped with a double pawl system. •Brake fitted with asbestos free friction discs. •Load chain wheel is made of precision and wear-resistant alloy steel. •Freewheel is possible in unloaded condition. •Top and bottom swivel hook with robust safety latches. •In case of overload, the hooks will gradually bend and do not suddenly break off. •Galvanized load chain Grade 8. •Lever with REMA rubber anti-slip handle. •* = without overload protection. Standard delivery •1,5 m lifting height (max distance between top and bottom hook). •250 kg without overload device. Option •Available in other lifting heights. •Marking: According to standard, CE-marked •Standard: EN 818-7, EN 13157 •Safety factor: 3
