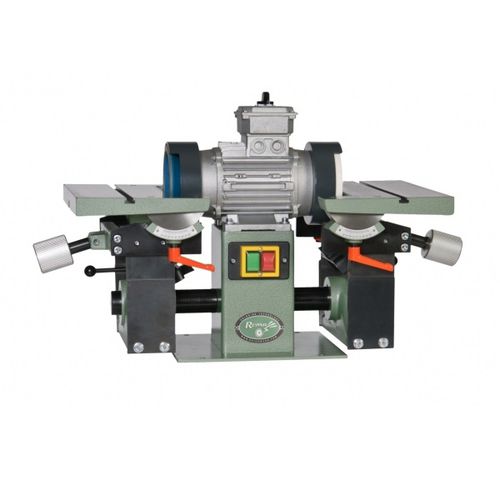

Electric bench grinder ST series

industrial

The REMA tool grinding and lapping machines are constructed for fast and simple grinding of lathe tools and turn plates. The machines can be delivered as single station tool grinding machine ST 1/125 or as double station tool grinding machine ST 2/125. The extremely robust design ensures an optimal grinding result and a long machine lifetime. The standard version contains the listed options depending on the machine type. The standard scope of delivery of both machines contains at least a spring-loaded support table which is axially adjustable and fixable. The table inclination is continuously adjustable from -5° to +15° via tapered spindle. The sideward movement can be locked with the help of a fixing lever to enable radius grinding. The T-slot serves as guide for the angle stop, so the desired angle of the tool to the grinding wheel is kept during grinding. BENEFITS optimal grinding pattern thanks to robust machine designeconomic grinding due to long lifetime OPTIONS bench or pedestal model optionally available with protection hood for mounting of grinding wheels with a diameter of 175 mm (for bigger tool dimensions) wet grinding attachment (large fluid collection basin, powerful coolant pump and adjustable controls) Please note that grinding wheels have to be ordered separately.
