Bulk material bag opener

Description

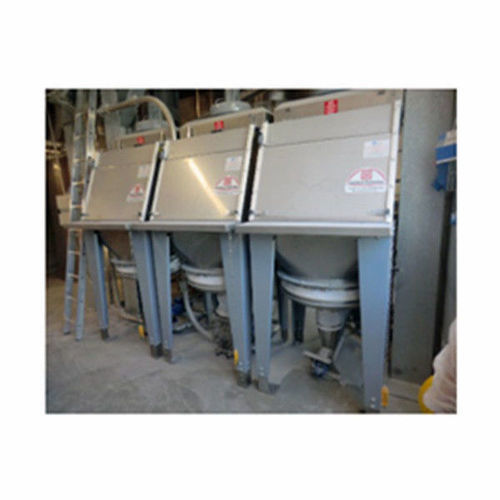

The Manual Bag Opener features a grille with a front rest mounted above a hopper supported on four feet. A fabricated hood with a front protection door covers the hopper and grille. Units are supplied in carbon steel, 304L or 316L stainless steel and are available with an integrated de-dusting filter unit or prepared for centralised dust suction. In versions with an integrated filter the filter elements are pneumatically cleaned by reverse air jet.

Features

• Construction materials: carbon steel, 304L stainless steel, 316L stainless steel
• Grille mounted on top of hopper with fabricated hood and front protection door
• Available with integrated de-dusting filter or prepared for centralised dust extraction
• Filter element options: cartridges, round bags, elliptical bags
• Filter surface area: 3 to 22 m2 (32 to 237 sq ft)
• Collecting hoppers with various capacity volumes
• Support feet with adjustable height
• Available in ATEX version for zone 22
• Built-in fan-operated, air-jet cleaned dust collector for maintenance-friendly operation

Benefits

• Quick access to internal parts via front protection door for inspection and cleaning
• Reduced airborne dust with integrated filter or centralised extraction option
• Compact, space-saving footprint and practical access for operators

Technical specifications

• Materials: carbon steel, 304L stainless steel, 316L stainless steel
• Design: grille on top of hopper; fabricated hood with front protection door; hopper supported by four feet
• Dust handling: integrated de-dusting filter unit or prepared for centralised dust suction
• Filter element types: cartridges, round bags, elliptical bags
• Filter surface: 3 to 22 m2 (32 to 237 sq ft)
• Hopper: multiple capacity volumes available
• Support feet: height-adjustable
• ATEX: available in ATEX version for zone 22
• Filter cleaning: pneumatic reverse air-jet cleaning of filter elements
• Dust collector: built-in fan-operated, air-jet cleaned for easy maintenance
