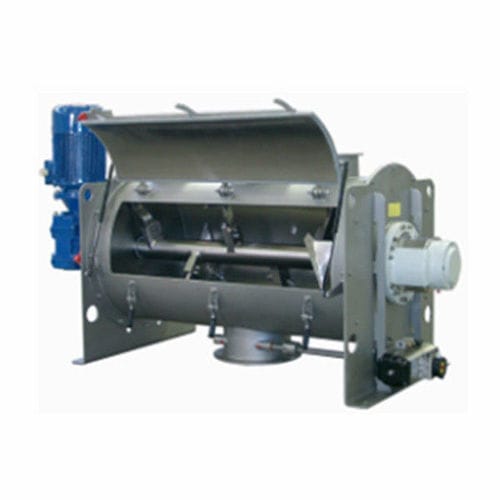

Paddle mixer horizontalbatchsolid/liquid
Add to favorites
Compare this product
Characteristics
- Technology
- paddle
- Configuration
- horizontal
- Batch/continuous
- batch
- Product type
- solid/liquid
- Applications
- for battery materials
- Other characteristics
- stainless steel, single-shaft, ATEX
- Capacity
Max.: 17,500 l
(4,623.01 gal)Min.: 10 l
(2.64 gal)
Description
Technical features
Benefits
Structural features
Technical specifications
- Capacity: 10–17,500 liters per batch
- Mixing accuracy: mixing ratio up to 1/100,000
- Variation coefficient (CV): typically 3–5%
- Optional integrated liquid addition
- ATEX compliance available as an option
- Optional internal coatings suitable for battery and specialty industries
Benefits
- Short mixing times for increased throughput
- High reproducibility between batches
- Large inspection door for easy access and maintenance
- Durable construction for continuous industrial use
- Maximum mixing homogeneity without product damage
- Low maintenance requirements and high uptime
- Access to mixing know-how and on-site test facilities
Structural features
- Wide inspection door providing comfortable interior access
- Mixing chamber produced in carbon steel, anti-wear steel or 304L/316L stainless steel
- Adjustable and replaceable mixing tools
- End bearing assemblies with multiple shaft-seal configurations (air or nitrogen purge)
- Flush discharge valve ensuring complete emptying
Technical specifications
- Model / Type: Batch-type single-shaft mixers
- Capacity range: 10 to 17,500 liters per batch
- Mixing accuracy: up to 1/100,000
- Variation coefficient (CV): typically 3–5%
- Liquid addition: optional integrated liquid dosing
- Explosion protection: ATEX available as an option
- Interior coating: optional coatings for battery or specialty sectors
- Mixing chamber materials: carbon steel, anti-wear steel, 304L or 316L stainless steel
- Access: large inspection door for internal access
- Mixing tools: adjustable and replaceable
- Shaft sealing: end bearing assemblies with air or nitrogen purge options
- Discharge: flush discharge valve for complete emptying
