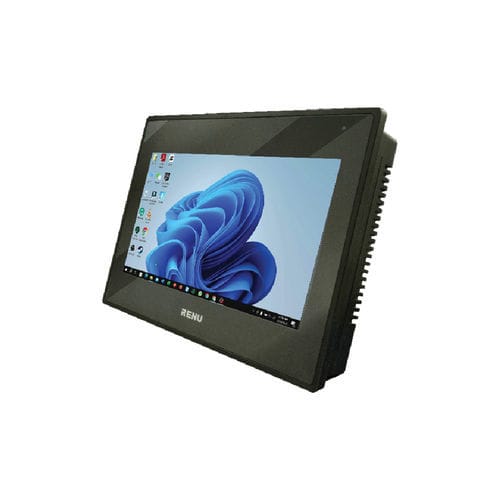

Industrial monitor IM6151CNIPS LCDPCAP capacitive touch screen15.1"
Add to favorites
Compare this product
Characteristics
- Technology
- IPS LCD, PCAP capacitive touch screen
- Applications
- industrial
- Display size
- 15.1"
- Resolution
- 1280 x 800
- Mounting
- panel-mount, VESA mounting, wall-mount
- Other characteristics
- HDMI, USB Type-C, VGA, high-brightness, IP66
- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Colors
16M
Brightness
-
1000 nits
Contrast Ratio
-
800:1
Backlight Life
-
50,000 Hours
Viewing Angle
Vertical: Center to 80° (Top to Bottom)
Horizontal: Center to 85° (Left to Right)
CPU and Power
Power Supply
24VDC(±15%)
Isolation
Yes (for 24VDC only)
Environmental and Approvals
Operating Temperature
0 to 50°C
Storage Temperature
-20 to 85°C
Humidity
-
10 to 90% (Non-Condensing)
Shock Immunity
25g, 11ms, 6 shocks per axis, total 18 shocks (X, Y, Z)
Vibration Immunity
-
5~150Hz,3g peak, (X, Y, Z)
Catalogs
IM6151CN
2 Pages
