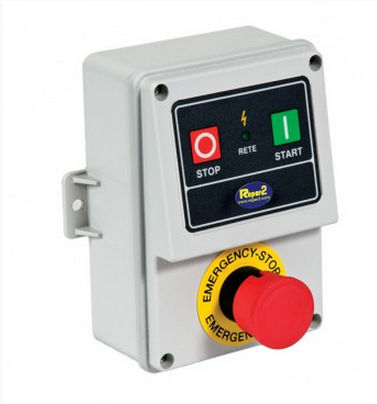

Mushroom push-button switch BT 3HPemergency stopsealedelectromechanical
Add to favorites
Compare this product
Characteristics
- Type
- mushroom, emergency stop
- Protection level
- sealed
- Other characteristics
- electromechanical
Description
EMERGENCY BOXES
Suitable for motors up to 3HP (2,25kW) 400 volt triphase and 1,5HP (1,12kW) 230 volt monophase
Functions: Triphase/monophase motor start/stop controlled by membrane push button switches or emergency push button.
Features: Waterproof box with external fixing brackets, spare fuse inside box, warning light. Low tension (24V) command functions, management of safety microswitches installed on the machine.
Dimensions: 170 x 118 x H82 mm
Code: TL/3HP/PIN1V
