Short description

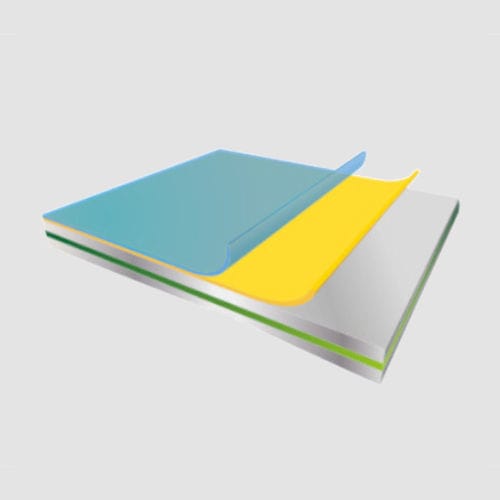

Metalplate + is a laminate product composed of two metal layers (same or different thickness) bonded by a viscoelastic resin adhesive core that provides noise and vibration damping properties.

General

• Technical product for industrial applications.
• Standard finish: metallic (galvanized).
• Complies with building and marine regulations (Code PEF2010 Annex 1, Part 5).
• Available with alternative finishes: PVC, PET coatings or stainless options.
• Designed to provide a damping effect.

Product behaviour (test data)
DESCRIPTION - TESTING STANDARD - UNIT - RESULT - OBSERVATIONS
Total thickness - EN 13523-1 / ASTM D1005 - mm - 0.5-1.5 -
Pencil hardness - EN 13523-4 / ASTM D3363 - - - > H - Applicable to the coated product
Bending T* - EN 13523-7 / ASTM D522 - - - Good -
* This product is not recommended for deep bending processes. Additional fixing methods may be required for some applications or special-shaped parts.

Industries

• Automotive
• Commercial refrigeration
• Construction
• Domestic appliances
• Elevators
• Marine

Characteristics / technical specifications

• Product type: Laminate composed of two metal layers bonded by a viscoelastic resin adhesive core.
• Function: Noise and vibration damping.
• Total thickness: 0.5 - 1.5 mm (according to EN 13523-1 / ASTM D1005).
• Pencil hardness (coated product): > H (EN 13523-4 / ASTM D3363).
• Bending performance: Good (EN 13523-7 / ASTM D522). Not recommended for deep bending processes; additional fixing methods may be required for some applications or complex shapes.
• Standard finish: Metallic (galvanized).
• Available finishes/options: Coated with PVC, PET, etc., or stainless finishes.
• Compliance: Meets building and marine regulations (Code PEF2010 Annex 1, Part 5).
• Effect achieved: Damping (noise and vibration reduction).
