Horizontal drilling rig MUKI LHBP
self-propelledrotaryhydraulic

horizontal drilling rig
horizontal drilling rig
horizontal drilling rig
horizontal drilling rig
horizontal drilling rig
Add to favorites
Compare this product


Characteristics

Drilling type
horizontal
Mobility
self-propelled
Drilling unit
rotary
Other characteristics
hydraulic, electric
Drilling diameter

Min.: 0 mm (0 in)

Max.: 74 mm (3 in)

Drilling depth

Min.: 0 m (0'00")

Max.: 15 m (49'02")

Description

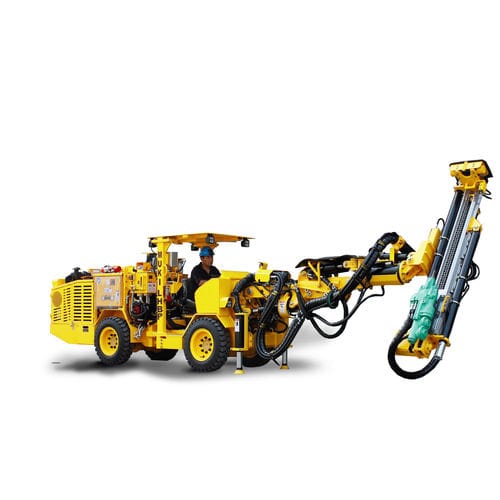

MUKI LHBP is an electro-hydraulic rig for long hole drilling, it has an hydraulic boom, 3AP model, with parallel holding. Long hole drilling feed 2500 series with 2 Stingers and hydraulic clamp. Equipped with Montabert drifter HC 50 (13 kW). Full 360°, horizontal coverage with parallel holding is 2.45 m; maximum length of drilling up to 15 m, diameters up to 74 mm bit, Reamer 127 mm. Chassis for heavy duty application, articulated 4WD, self-propelled with diesel, electro hydraulic system for drilling. Applications: • Sub Level Caving, benching • Sub Level Stoping • VCR and cable bolting

Catalogs

MUKI LHBP
MUKI LHBP
4 Pages
