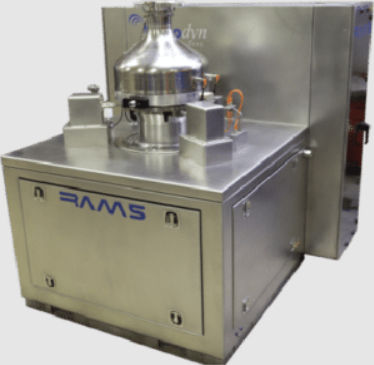

Resonant acoustic mixer RAM 5 Pharma

verticalbatchsolid/liquid

The Energetics Industry Standard Specifically designed for mixing hazardous and energetic materials, government and defense customers rely on ResonantAcoustic Mixers’ (RAM) technology for safe, high quality, low-cost processing of energetic and hazardous materials. The RAM 5 H delivers better results, improved efficiency, and new product opportunities at a larger payload capacity. Each RAM 5 H configuration matches the right processing functions with critical processing demands, exceeding the performance of traditional technologies. Certifiable to Class I Div I, Class II Div I, and other standards. Features of the RAM 5 H

Key Processing Capabilities:

• Mixing and processing up to 80 lb (36.29 kg)

• Any combination of solids and powders from nano-scale and up, liquids and gasses, and viscous and slurry materials

• Coating, milling, and grinding capability

• On-board control of processing accessories

• Mixing vessel temperature control from 302F (150C) heating to 32F (0C) cooling

• Operate automatic or manual vacuum, reaching 10 Torr

• Monitor mixing parameters in real-time

• Download processing data for analysis and documentation

• Develop, store, and secure up to 100 recipes for permanent recording of operations and measured results

• Compatible with Resodyn Continuous Acoustic Mixing technology

Features:

• Intense, yet gentle acoustic mixing for rapid, highly-repeatable, ultra-high-quality results

• All housing and enclosure materials are sealed, purged, 304L stainless steel, preventing entry of processed materials into the enclosure

• Redundant ground paths mitigate static charge build-up

• Remote Control Panel operation up to 2.5 miles (4 km)

• Laptop based human machine interface (HMI)

• Multiple level security and access control

• Temperature sensor - 316L stainless steel resistance temperature detectors (RTDs) with m12 connector, compatible with vacuum and temperature controls
