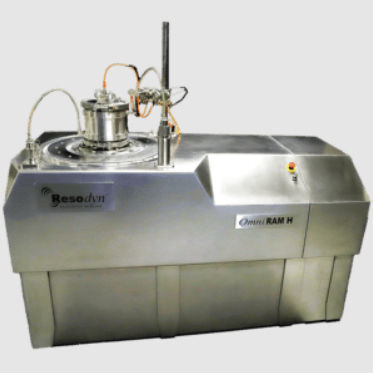

Resonant acoustic mixer OmniRAM H™

verticalbatchsolid/liquid

The Energetics Industry Standard

Specifically designed for mixing hazardous and energetic materials, government and defense customers rely on ResonantAcoustic Mixers’ (RAM) technology for safe, high quality, low-cost processing of energetic and hazardous materials. The OmniRAM H delivers better results, improved efficiency, and new product opportunities at a larger payload capacity. Each OmniRAM H configuration matches the right processing functions with critical processing demands, exceeding the performance of traditional technologies. Certifiable to Class I Div I, Class II Div I and other standards.

Features of the OmniRAM H

Key Processing Capabilities:

• Mixing and processing up to 11 lb (5 kg)

• Any combination of solids and powders from nano-scale and up, liquids and gasses, and viscous and slurry materials

• Coating, milling, grinding, spray coating capabilities

• On-board control of processing accessories

• Mixing vessel temperature control from 194F (90C) heating to 15.8F (-9C) cooling*

• Operate automatic or manual vacuum, reaching 10 Torr*

• Monitor mixing parameters in real-time

• Download processing data for analysis and documentation

• Develop, store, and secure up to 100 recipes for permanent recording of operations and measured results

• Compatible with Resodyn Continuous Acoustic Mixing technology*

• Intense, yet gentle acoustic mixing for rapid, highly-repeatable, ultra-high-quality results

• All housing and enclosure materials are sealed, purged, 304L stainless steel, preventing entry of processed materials into the enclosure

• Laptop-based human machine interface (HMI)*

• Modular, slide-out service units for processing accessories

• Multiple level security and access control

• Height-adjustable accepts many vessel types

• Temperature sensor - 316L stainless steel resistance temperature detectors (RTDs) with m12 connector, compatible with vacuum and temperature co

Product Details:

Up to 11 lb (5 kg) payload capacity, full-featured, digitally controlled, batch mixer for larger than bench scale development, pilot and small-scale production and processing of hazardous and energetic materials. Dimensions 42″ H x 75″ W x 35″ D Power Specifications 208-240 VAC/1 Phase (50/60 Hz)
