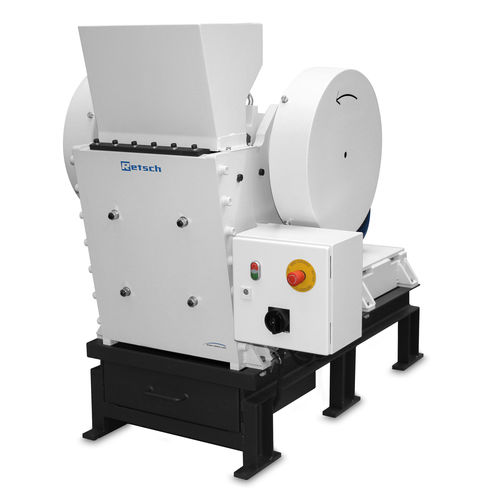

Jaw crusher BB 600

stationary

The Jaw Crusher BB 600 is specifically designed for accepting large feed sizes up to 350 x 170 mm. The gap width can be set stepless from 6 - 60 mm. Depending on the sample material, particle sizes down to 6 mm can be obtained in one working run, resulting in an excellent crushing ratio of 25. A throughput of up to 3500 kg/h is possible with the BB 600. The RETSCH jaw crusher series is available in 8 different sizes. Throughput and final fineness depend on the crusher type, selected gap width and breaking properties of the sample material. Robust design, simple handling and cleaning are the features of the RETSCH jaw crusher models. Small amounts of sample are processed batchwise; for larger amounts the crushers can be operated continuously. Robust & Versatile Excellent crushing ratio Continuous gap width setting Removable hopper with splash-back protection Suitable for continuous and batchwise crushing Superiority in detail The BB 600 achieves a throughput of up to 3,500 kg per hour. For batchwise processing, the jaw crusher is equipped with a 30 l collecting receptacle. Further features like overload protection and a feed hopper with splash-back protection make working with the BB 600 convenient and safe. The breaking jaws for the BB 600 are sized 400 x 600 mm and are available in manganese steel steel for heavy-metal-free grinding NiHard4 steel. Process-line version Due to the low installation height of 1 meter the BB 600 is ideally suited for continuous operation in automatic installations and sampling stations. Thanks to the compact design of the BB 600 it may replace a jaw crusher in existing installations.
