Ultrasonic cleaning machine UR

automaticfor test sievesmultipurpose

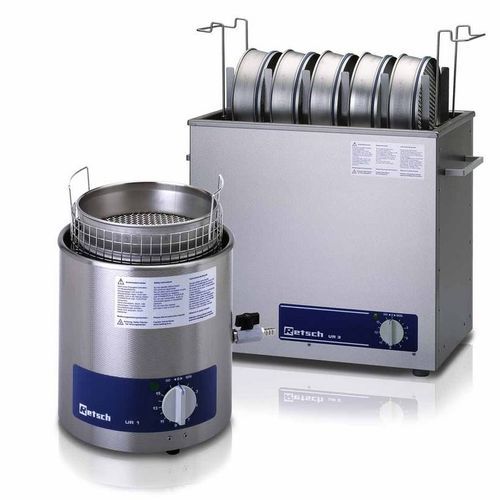

The ultrasonic bath range UR includes three sizes for cleaning test sieves and grinding tools quickly and easily. UR 1 is for test sieves up to 203 mm dia., UR 2 for test sieves up to 450 mm dia., and the UR 3 for the simultaneous cleaning of up to 5 test sieves 200/203 mm dia. The gentle yet thorough cleaning of test sieves in an ultrasonic bath increases their working lives as damage which could occur during manual cleaning is avoided. Product Advantages fast, gentle, and highly efficient cleaning universal and compact easy to use, saves time and cost intensive dispersion and degassing low maintenance long life Functional Principle A high-frequency generator in the ultrasonic bath produces about 35000 oscillations per second, which are transferred into the cleaning solution and cause it to resonate. The energy density of the sound field is so high that a cavitation effect sets in. Innumerable extremely small vacuum bubbles develop in the ultrasonic bath and collapse in microseconds due to pressure and suction. The pulses triggered by this remove dirt particles even at the deepest, least accessible places or they result in homogenisation, dispersion and degassing.
