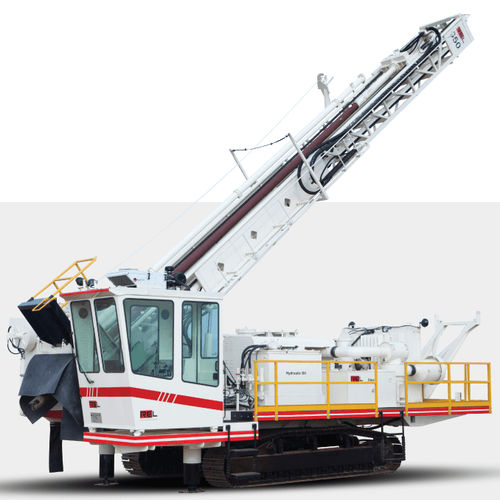

Blasthole drilling rig C650 series

core drillingautonomouscrawler

C650 – Built for maximum performance The REL C650 Rotary Blast Hole drills are designed to drill clean holes of 6 1/4 inch (159mm) to 9 inches (229mm) diameter to a maximum depth of 120 ft (36.5m) using 30 ft (9m) long rods and 160 ft (48m) using 40 ft (12m) long rods. Our Blast Hole is available in three variants DH, DM, DI designed to deliver the required diameter hole based on your mining needs. The Mast is electrically welded and made of square and rectangular steel tube mast of robust construction to withstand adverse drilling conditions The C650 Blast Hole Drills is available with 9 meter and 13 meter single pass mast options. The Mast is electrically welded square and made of rectangular steel tube mast of robust construction to withstand adverse drilling conditions Cabin of the REL 650 provides maximum comfort, usability conforming to the regulatory standards. The layout of the C650 Drill is designed for better serviceability with easy access to all daily check zones and regular change interval components Small in size big on performance – The C650 Series drills commands with the smallest footprint in its class providing it with better Spacing burden ratios and making it easier to manoeuvre in tight corners Its maximum height of 4.4 meters makes it easy for transportation along with the mast The REL C650 is available with three Autonomous Package Basic One touch Fully Autonomous Remotely Operated Fully Autonomous Packages
