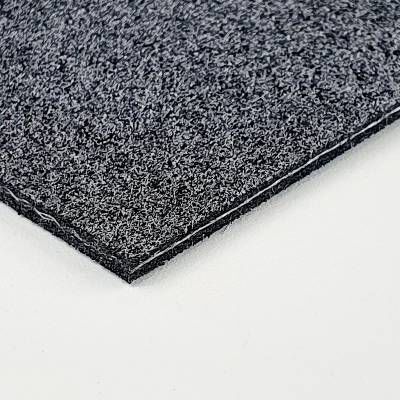

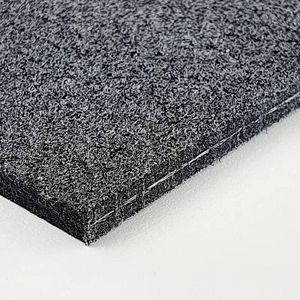

Flexible conveyor belt F-N-25-HCfabricfeltShore A
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Material
- fabric, felt
- Hardness
- Shore A
- Sector
- industrial
- Color
- black
- Applications
- food
- Other characteristics
- anti-static, coating
- Width
2,000 mm
(78.74 in)- Thickness
2.6 mm
(0.102 in)
Description
The 1-ply black felt belts are robust as well as flexible. They allow horizontal and inclined conveying of fragile, cutting, oily or sticky parts while facilitating the transfer. Operating silently, these felt conveyor belts are especially used for the accumulation of products.
Number of plies
1
Thickness of top coating
0 mm
0 in
k1% (after relaxation) per unit of width
9 N/mm
51 lbs/in
Minimum pulley Ø
30 mm
1.18 in
Minimum pulley Ø backflex
60 mm
2.36 in
Temperature range
-20°C à +120°C
-4°F à +248°F
