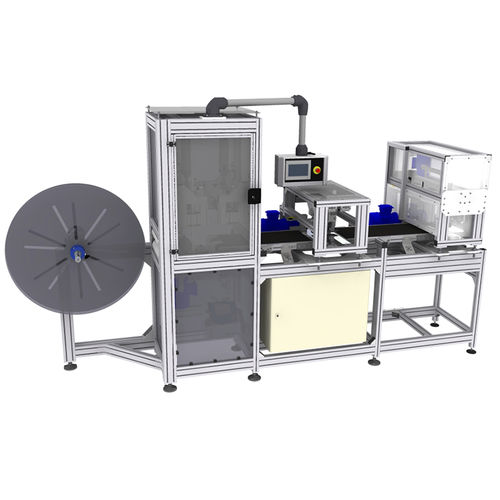

roll marking machine / automatic / continuous
MC-1

{{requestButtons}}

Characteristics

  • Technique:

    roll

  • Other characteristics:

    automatic, continuous

Description

Key features:

- Machine is designed for textile materials marking and cutting to length, for example mattress sides.
- Machine is feeding from a roll, marks notches and cuts needed length.
- Machine can work in two modes: automatic and continuous.
- Machine is designed for widths from 50 mm to 280 mm, with a cardboard core not less than 40 mm.
- Maximum roll diameter 950 mm.

Main elements:

- Feeder [1],
- Clamping rollers [2],
- Geared feed roller [3],
- Guiding system [4],
- Belt conveyor 1 [5],
- Control panel on a swivel arm [6],
- Marking module [7],
- Control box [8],
- Belt conveyor 2 [9],
- Cutting module [10],
- Supporting frame [11],
- Printer control unit [12],
- Printing heads [13],
- Printing nozzles cleaning button [14],
- End clamp [15],
- Feeder break [16],
- Adjusting wheel [17]
- Feeder lock [18].
