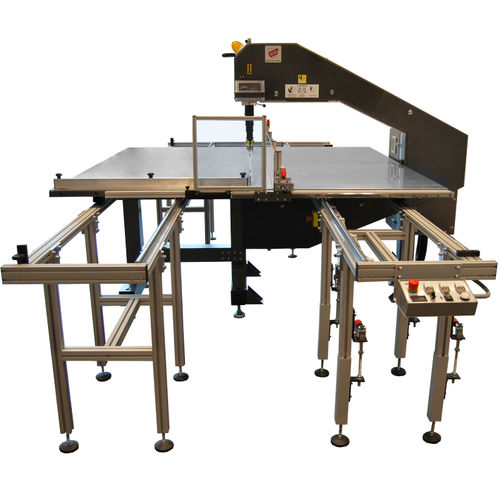

Band-knife cutting machine R1000/PB
textilemulti-ply fabricsingle-ply fabric

band-knife cutting machine
band-knife cutting machine
band-knife cutting machine
band-knife cutting machine
band-knife cutting machine
band-knife cutting machine
band-knife cutting machine
band-knife cutting machine
Add to favorites
Compare this product


Characteristics

Technology
band-knife
Material
textile
Product handled
multi-ply fabric, single-ply fabric
Configuration
sliding table
Other characteristics
universal
Maximum cutting height

190 mm
(7.5 in)

Cutting speed

18 m/s
(59.055 ft/s)

Overall length

2,430 mm
(96 in)

Overall width

4,240 mm
(167 in)

Height

1,850 mm
(73 in)

Description

R1000/PB band knife with manual sliding table is a universal machine for cutting medium-sized plies of material. Key features: - A universal and versatile machine for fabric and foam cutting. - Any band knife can be used with this device (straight, convex, concave or toothed). - Smooth tabletop. - Each machine is equipped with a knife sharpener and a dust-collecting tray covered with transparent casing. - A solid construction made of powder-coated steel. - An liftable telescopic cover allows for a quick adjustment of the cutting height with a push of a button. - All machines are equipped with a mechanical band catcher and the panels are protected with end switchers. - (Optional) vacuum system for removing dust and material pieces during cutting. - Adjustable manual positioner (side stop) with a scale for cutting stacked pieces of material (in standard). - A movable tabletop makes it easy to cut identical segments of the material the operator works with. - The tabletop can be locked in a comfortable position that allows the operator to work as in the standard machine. - Table legs and tabletop are made of aluminium. - An additional transparent cover increases work safety. Specifications: Model: R1000/PB Tabletop dimensions: 1980 x 2000 mm (77.95" x 78.74") Overall dimensions (LxWxH): 2430 x 4240 x 1850 mm (95.7" x 166.93" x 72.85") Cutting height: 190 mm (7.48") Band length: 4250 mm (167.3") Arm length: 1000 mm (39.35") Knife speed: 0-18 m/s (59 ft/s) Guide wheels quantity: 3 Voltage (optional 230 V / 50 Hz): 400 V / 50 Hz Motor Power (optional 2,2 kW): 1.5 kW
