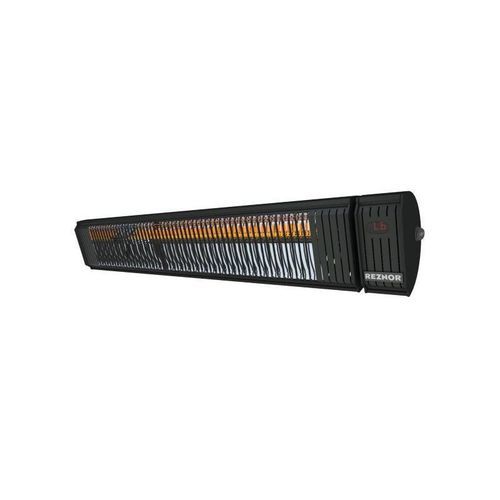

Electric radiant heater RIEH Series

insideoutsidecarbon

Overview
Reznor® RIEH Series electric infrared heaters provide targeted, instant radiant heat using carbon‑fiber infrared emitters. Designed for architectural and design-focused environments, the RIEH Series is suitable for commercial patios, restaurants, hotels, upscale residential projects, multi-unit housing, garages, workshops, and retail spaces.

Instant, efficient & comfortable heat

• Infrared conversion delivers radiant warmth directly to people and surfaces, reducing heat loss to unused air.
• Carbon‑fiber emitters achieve full output in seconds and emit a soft, low‑glare light suitable for design-sensitive spaces.
• Effective in open or drafty areas where convection heaters are less efficient.

Two aesthetic options

• Standard model: Open ventilated construction with protective grille for efficient airflow and radiant performance; complements industrial and contemporary architecture.
• Glass‑Front model: Ceramic glass front with ultra‑low light emission for a refined, minimalist appearance and premium visual comfort.

Safety, certification & suitable environments

• Certified to cETLus / UL2021 / CSA22.2 safety standards.
• Emission‑free, odorless and silent operation — no combustion or fumes; appropriate for enclosed and semi‑enclosed spaces.
• IP65 weather‑resistant rating for reliable outdoor performance in rain, snow, coastal and high‑dust environments.

Key features

• Two design options: Glass‑Front and Standard Open‑Grille.
• Carbon‑fiber emitters for long life, instant output and low‑glare warmth.
• IP65 weather‑resistant construction for outdoor exposure.
• Powder‑coated, aircraft‑grade aluminum housing for corrosion resistance.
• Includes wall and ceiling brackets for flexible mounting and straightforward installation.
• Single service part: replacement lamps simplify maintenance and inventory.
• Integrated onboard switch; 6‑stage remote available on 1500W and 3000W models (reduces need for external control boxes).
• Wattage range 1500W–6000W to cover residential and commercial applications.

Applications

• Restaurants and bars
• Outdoor patios and terraces
• Residential living areas and luxury projects
• Garages and workshops
• Retail and hospitality spaces

Installation & service notes

• Typical installation time: 30–45 minutes once electrical supply is in place.
• Supplied with wall and ceiling brackets; replacement lamps are the only routine service part.
• Compact lineup with multiple voltage and mounting options helps reduce excess warehouse inventory.

Product documentation
Brochure, technical specifications and installation/operation/service manuals are available for the RIEH product line.

Technical specifications

• Brand: Reznor®
• Model / Series: RIEH Series
• Technology: Carbon‑fiber infrared emitters
• Aesthetic options: Standard open‑grille and Glass‑Front (ceramic glass)
• Certifications: cETLus / UL2021 / CSA22.2
• IP rating: IP65 (weather‑resistant)
• Housing: Powder‑coated, aircraft‑grade aluminum
• Wattage range: 1500W to 6000W
• Controls: Integrated onboard switch; 6‑stage remote on 1500W & 3000W models
• Mounting: Wall or ceiling brackets included
• Service parts: Replacement lamps only
• Suitable for: Indoor and outdoor use; emission‑free and silent operation
