SF6 analyzer 973

processpuritybenchtop

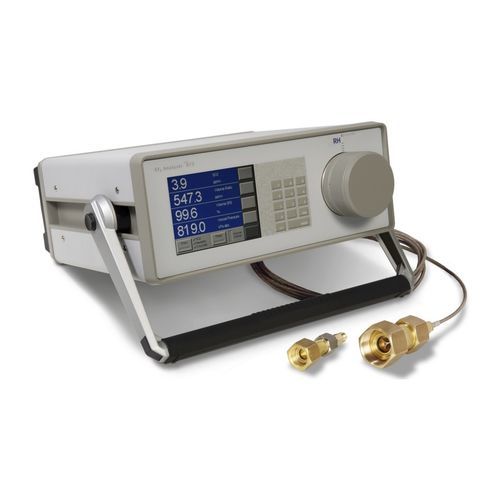

The RH Systems Model 973-SF6 Analyzer was specifically designed for measurement of humidity and SF6 purity in gas insulated switchgear systems. Humidity measurement data is displayed in ppmv, ppmw and dew/frost point at either system pressure or standard pressure. Purity measurement is displayed directly in % volume SF6. Both the humidity and purity measurements utilize accurate and reliable condensation techniques. Gas Recovery The 973-SF6 is equipped with a gas recovery system that stores the sampled gas during the measurement process in its internal storage tank. After completion of the measurement, the stored gas may be pumped back into the original compartment or into another container. Starting and ending system pressures are also measured.
