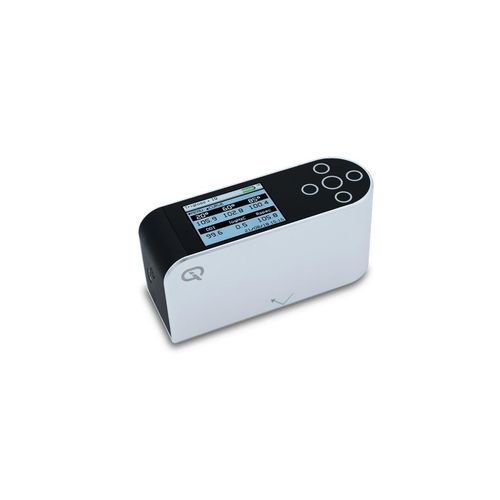

Haze glossmeter IQ 20/60

orange peelDOIthree-angle

Product overview
The Rhopoint IQ Gloss, Haze & DOI Meter quantifies surface appearance and reflective anomalies that standard glossmeters cannot detect. It profiles angular reflectance to deliver high-resolution measures correlated with human perception of texture and finish.

Key capabilities

• Measures specular gloss at 20° and 60° (85° variant available) for matt to mirror finishes
• Measures reflectance haze and Distinctness of Image (DOI)
• Provides Reflected Image Quality (RIQ) for high-resolution texture assessment (orange peel, waviness)
• Delivers RSPEC (peak gloss) and goniophotometric curves for detailed reflectance profiling

Standards & traceability

• Haze measurement aligned to ASTM E430 (reflectance haze)
• Compatible with ISO and ASTM gloss geometries
• Supplied with ISO 17025 UKAS calibrated reference standards

Measurement features
The IQ uses a high-resolution 512-element linear diode array to capture reflected light profiles and selects angular tolerances defined by standards. It automatically compensates for curved or textured samples by detecting the peak of reflected light and virtually aligning the measurement position.

What the IQ measures

• 20° / 60° gloss (optionally 85°)
• RSPEC (peak gloss)
• Reflectance haze (with diffuse compensation for metallics and specialty pigments)
• Reflected Image Quality (RIQ)
• Distinctness of Image (DOI)
• Goniophotometric curves (reflectance profile)

Haze and reflectance compensation
The IQ quantifies near-specular reflection haze and applies diffuse-reflection compensation to ensure accurate haze readings on bright colours, whites and metallic coatings where internal diffuse reflection occurs.

Data handling & reporting

• Simultaneous measurement of all parameters with date/time stamping
• On-instrument storage of readings and statistical summaries (batch statistics)
• Graphical trend display and goniophotometric curve export
• USB mass-storage file transfer (.csv); compatible with Novo-Gloss Multi Gauge software for analysis and reporting

Applications
Used across automotive, paints & coatings, consumer electronics, metal finishing, furniture, printing/packaging and other high-quality finished surfaces to assess reflective quality and appearance.

Benefits

• Detects surface effects (orange peel, waviness, haze) not identified by standard glossmeters
• High-resolution results that correlate better with human perception of surface quality
• Automatic curved-surface compensation for reliable measurements on contoured parts

Technical specifications

• Brand: Rhopoint Instruments
• Model: Rhopoint IQ
• Measurements: 20° / 60° (optional 85°), RSPEC, Reflectance Haze (ASTM E430), RIQ, DOI, goniophotometric curves
• Optics: 512-element linear diode array profiling reflected light across an arc
• Curved-surface adjustment: automatic peak-detection and virtual sensor alignment
• Haze compensation: diffuse-correction for metallic and high-reflectance coatings
• Data export: USB mass-storage (.csv); compatible with Novo-Gloss Multi Gauge software
• Calibration: supplied with ISO 17025 UKAS calibrated reference standards
• Typical industries: automotive, paints & coatings, printing/packaging, plastics, metal finishing, consumer electronics
