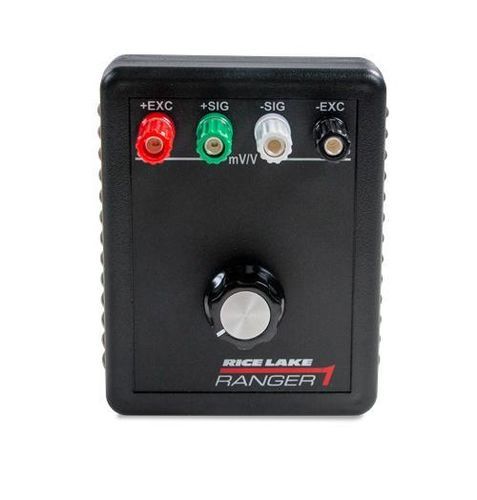

Simulator for laboratory applications Ranger 1

industrialload cellcell test

Product overview
Compact, economical variable-output simulator from Rice Lake designed for basic indicator troubleshooting and bench testing. The Ranger 1 provides an adjustable output range from 0 to 3 mV/V, enabling quick verification of load-cell indicators and scale system responses.

Key features

• ABS plastic enclosure; weighs less than 1 lb for easy portability
• Large vernier knob with smooth 10-turn potentiometer for precise adjustment
• Ideal for troubleshooting scale systems, verifying indicator stability and simulating setpoints
• Simple connections for rapid bench testing

Specifications

• Variable range: 0 to 3 mV/V
• Impedance: 700 ohm nominal
• Operating temperature: 0 °F to 122 °F (-18 °C to 50 °C)
• Connectors: Binding posts suitable for banana plug or 14 gauge wire
• Temperature coefficient: ±100 ppm/°C
• Dimensions (L × W × H): 4.5 × 3.5 × 1.25 in (114 × 89 × 32 mm)
• Weight: < 1 lb (approx.)
• Warranty: One-year limited
