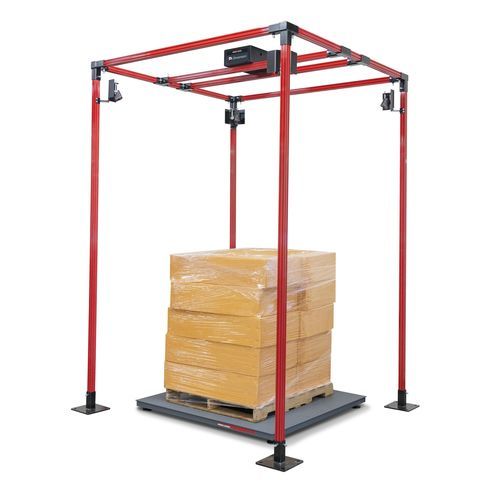

Dimensional inspection system iDimension® Flex

Overview
The iDimension® Flex Series brings state-of-the-art dimensioning technology to shipping and logistics operations. It provides rapid, legally traceable dimensions for pallets and boxes and can be integrated above conveyors or pallet stretch wrappers to dimension, weigh and capture images in a single automated step. Systems are available free-standing or suspended; an optional center sensor captures dimensions of freight wrapped in opaque materials.

Key Features

• Free-standing or suspended installation
• High-resolution color camera for image capture
• Legal for Trade dimensions in two seconds
• iDimension SS (Software Suite) for network integration
• iDimension App for data and image storage/transmission
• API and SDK for HTTP-based integration, status queries and XML parsing
• QubeVu Server API for secure push uploads to local or cloud data centers (REST with OAuth 2.0)

Flexible Configuration
The Flex Series supports multiple sensor arrays (2-, 4-, 5- and 8-sensor options) to measure cuboidal and irregular freight. Choose suspended or free-standing mounts to match operational layouts. A 2-sensor conveyor variant handles parcels longer than 48 in (122 cm).

Claims Defense
Alongside dimensional data, iDimension® Flex captures color images to document shipment condition prior to dispatch. These images provide visual evidence to support claims defense and dispute resolution.

Certified Legal for Trade
iDimension® Flex delivers NTEP-certified Legal for Trade measurements for high accuracy and regulatory compliance, reducing the risk of carrier audits and invoice disputes.

iDimension Flex Series Specifications
Legal for Trade Measurement Capability:
Min: 12 × 12 × 12 in (30 × 30 × 30 cm)
Max:
2-sensor: 84 × 40 × 40 in (210 × 100 × 100 cm)
4-sensor: 102 × 102 × 96 in (260 × 260 × 244 cm)
8-sensor: 156 × 102 × 96 in (396 × 260 × 244 cm)

Power Requirements:
110 to 240 VAC (power cable included)

Communication Ports:
Ethernet TCP/IP, USB, Serial RS-232

Operating Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

Humidity:
0 to 90% non-condensing

Warranty:
Two-year limited; Five-year limited, sensors only

Approvals:
NTEP 19-076; OIML; CE Marked; UKCA; FCC; EU MID Certified

Technical specifications

• Measurement capability (Legal for Trade) from 12 × 12 × 12 in (30 × 30 × 30 cm) up to sensor-dependent maximums: 2-sensor 84 × 40 × 40 in; 4-sensor 102 × 102 × 96 in; 8-sensor 156 × 102 × 96 in
• Installation: free-standing or suspended; integration above conveyors or stretch wrappers
• Camera: high-resolution color imaging for dimension capture and condition recording
• Sensors: available in 2-, 4-, 5- (center sensor option), and 8-sensor arrays
• Power: 110–240 VAC (power cable included)
• Communications: Ethernet TCP/IP, USB, Serial RS-232
• Temperature range: operating 14 °F to 104 °F (-10 °C to 40 °C)
• Humidity: 0–90% non-condensing
• Warranty: two-year limited; five-year limited for sensors only
• Software & integration: iDimension SS, iDimension App, API/SDK, QubeVu Server API with REST and OAuth 2.0
• Certifications/approvals: NTEP, OIML, CE, UKCA, FCC, EU MID
