Dimensional measurement result viewing, analysis and reporting software iDimension® SS

Product Overview

• Automatically display and/or transmit density and NMFC freight class
• Real-time data access and triggering via REST API; Swagger API toolkit included
• Supports peripherals: barcode scanners and label printers
• Configurable measurement database capturing:
  • Identification number (e.g., product or sales order)
  • Dimensions (L × W × H)
  • Scale or manual weight entry
  • Volume and volumetric conversion
  • Three configurable user fields
  • High-resolution images and bounding box images
• Email notification alerts and comprehensive error logging with high-resolution image capture
• Digital remote I/O for PLC integration
• Shipping method analyzer for girth and volume thresholds (with iDimension SS real-time display application)
• Local data storage with automatic export options (FTP, SFTP, FTPS, SMB)
• Data export formats: CSV, JSON, XML, TXT; image composition and annotations supported
• QR code display for alternate input to MRP, TMS and WMS systems
• Role-based security model and downloadable application log files
• Forklift database support for stop-and-go operations

Product Description

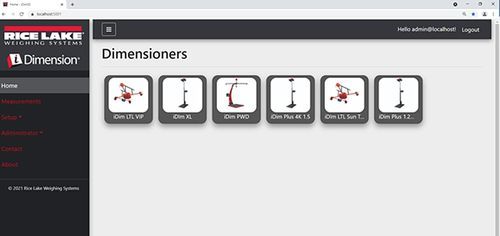

The iDimension® SS is a dynamic data management application designed to collect, store and distribute scan data from iDimension dimensioning devices. It captures dimensions, weights, images and barcodes, enabling local storage and automated export to warehouse and shipping systems via REST API or configurable export routines. The application can operate standalone or integrate across a network of iDimension devices.

System Requirements

• Windows® 10 build 1607 or newer (64-bit only)
• 2.0 GHz processor or faster
• 250 MB free disk space for installation
• 8 GB RAM or more recommended
• Ethernet TCP/IP connection to dimensioners and optional scanners/printers; supports Rice Lake 680/1280 scale indicators
• Supported browsers: Chrome®, Microsoft Edge®, Firefox®, Safari®

Features / Technical specifications

• Integration: REST API with Swagger toolkit for real-time access and triggers
• Database: Configurable measurement database capturing ID, dimensions, weight, volume, user fields, images and bounding box data
• Export: Automated export via FTP, SFTP, FTPS and SMB; outputs in CSV, JSON, XML and TXT; image composition and annotation support
• Peripherals: Barcode scanner and label printer support; Ethernet TCP/IP connectivity
• Security: Role-based access control and detailed application logs
• Error handling: Error logging with high-resolution image capture
• Special features: Shipping method analyzer (girth/volume), QR code display for alternate system input, digital remote I/O for PLCs, forklift database for stop-and-go
• System footprint: ~250 MB install size; recommended 8 GB RAM; 64-bit Windows 10+; 2.0 GHz CPU+
• Database note: SQLite maximum size depends on file system
