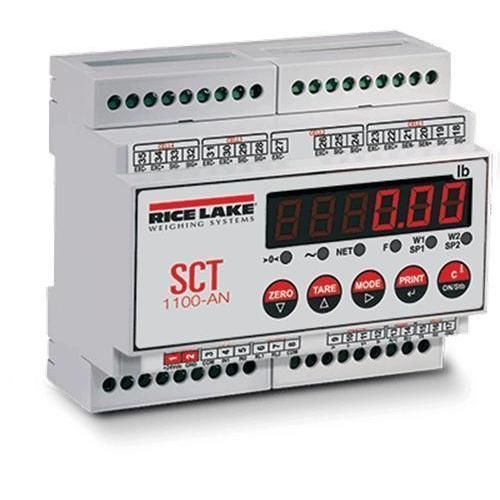

Analog load cell transmitter SCT-1100

digital

Overview
The SCT-1100 is a compact signal conditioning transmitter for up to four load cell inputs. It can operate as independent or dependent four-channel weight transmitters to provide direct net, gross and tare readings for industrial weighing applications. DIN-rail mounting and a red LED display make it suitable for control panels and machine enclosures.

Key features

• Supports up to four independent scales or four load cell inputs
• Quick menu for real and theoretical calibration
• Red LED six-digit display (10 mm)
• DIN rail mountable, NEMA Type 4 enclosure
• Configurable calibration and setup parameters from keyboard
• Calibration using linearization points
• Net, gross and tare readings; clearing, semi-automatic and preset tare; scale switching; configurable output thresholds
• Diagnostics via serial port, message display, printing; APW setting in counting mode; digital input for key press
• Selectable Modbus RTU or ASCII protocol on serial ports
• Configuration with Rice Lake Tools software

Approvals / Certifications

• NTEP 20-046
• Measurement Canada AM-6165C
• OIML R76/2006-A-GB1-19.17
• UKCA Marked
• cULus Listed

Technical specifications

• Power: 12/24 VDC
• Power consumption: 70 mA min to 100 mA max
• Excitation voltage: 5 VDC, 120 mA (supports 8 × 350 Ω load cells)
• Analog signal input range: ±39 mV
• Analog signal sensitivity: 0.3 μV/graduation minimum
• A/D: Four‑channel 24‑bit sigma‑delta conversion, up to 200 conv./sec auto select
• Resolution: Internal 1,500,000 counts; Display 800,000
• Digital I/O: Two inputs 12/24 VDC; Two outputs 150 mA (48 VAC / 60 VDC)
• Serial ports: (1) RS-485 and (1) RS-232; Modbus RTU or ASCII selectable/bidirectional
• Analog output (optional): Opto-isolated 16-bit; 0–20 mA, 4–20 mA (max 350 Ω); 0–5 VDC, 0–10 VDC (min 10 kΩ)
• Annunciators: Net, center of zero, stability
• Keys: Five‑key membrane panel (Zero, Tare, Mode, Print, C)
• Dimensions (L×W×H): 4.17 × 3.54 × 2.28 in (106 × 90 × 58 mm)
• Operating temperature: 5 °F to 104 °F (−15 °C to 40 °C)
• Humidity: 85% non-condensing
• Enclosure/Material: NEMA Type 4, plastic; clear cover with six PG9 cord grips
• Warranty: One-year limited
