PROFIBUS DP interface module 69948industrial
Add to favorites
Compare this product
Characteristics
- Bus
- PROFIBUS DP
- Other characteristics
- industrial
Description
Product overview

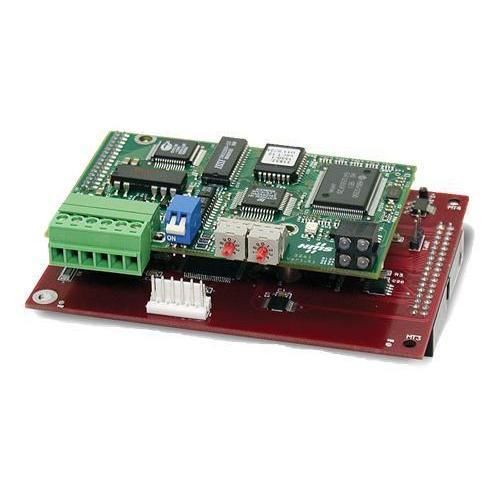

PROFIBUS DP® Interface is a communication adapter designed for internal installation in 720i™, 820i® and 920i® digital weight indicators, enabling integration with PROFIBUS DP networks.
Key features
PROFIBUS DP specifications
Power: 5 VDC, 350 mA
Fieldbus interface: pluggable screw connector
Diagnostic LEDs: module status and network status
Dimensions: 2.00 × 1.90 × 0.75 in (51.8 × 48 × 19 mm)
Operating temperature: 14 °F to 158 °F (-10 °C to 70 °C)
Compatibility and installation
PROFIBUS DP® Interface is a communication adapter designed for internal installation in 720i™, 820i® and 920i® digital weight indicators, enabling integration with PROFIBUS DP networks.
Key features
- DP intelligent device
- Standard GSD file available for download
- 128 selectable addresses
- Auto baud rate up to 56 K
- Registered with PROFIBUS Trade Organization
- Onboard diagnostic LEDs for module and network status
PROFIBUS DP specifications
Power: 5 VDC, 350 mA
Fieldbus interface: pluggable screw connector
Diagnostic LEDs: module status and network status
Dimensions: 2.00 × 1.90 × 0.75 in (51.8 × 48 × 19 mm)
Operating temperature: 14 °F to 158 °F (-10 °C to 70 °C)
Compatibility and installation
- Compatible with 720i™, 820i® and 920i® digital indicators
- Designed for internal mounting inside the indicator enclosure
- GSD file and installation documentation available for system configuration and commissioning
