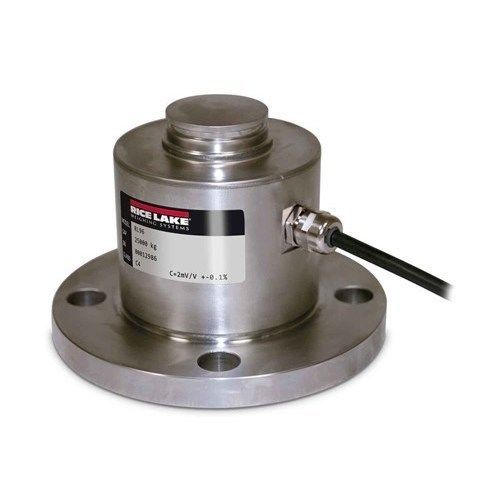

Compression load cell RL96

canister2 mV/VIP69K

Overview

• Capacities range from 15 tons to 200 tons
• Stainless steel finish
• Welded seal
• IP69K rating

Approvals

• OIML R60

Dimensions (mm)
Rated capacity | A | B | C | D | E
15–40 t | 150 | 44 | 104 | 18 | 12
50–200 t | 200 | 56 | 142 | 18 | 17

Key Product Information

• Full Scale Output: 2.0 mV/V
• Output Resistance: 700 ohm
• Input Resistance: 800 ohm
• Material finish: Stainless steel
• Operating temperature: -10°C to 40°C
• Seal type: Welded seal, IP69K
• Safe overload: 150%
• Rated excitation: 15 V
• Combined error: 0.02%
• Insulation resistance: >5,000 megohms
• Cable length: 5 m
• Cable construction: PVC
• Cable colour code: Red = + Excitation; Black = - Excitation; Green = + Signal; White = - Signal; Yellow = + Sense; Blue = - Sense
• Warranty: One-year limited warranty

Parts / Available Items

• Part #161223 — Load Cell, CSR RL96 15 ton, stainless steel, IP68, 2 mV/V, 700 ohm, OIML R60
• Part #161224 — Load Cell, CSR RL96 20 ton, stainless steel, IP68, 2 mV/V, 700 ohm, OIML R60
• Part #161225 — Load Cell, CSR RL96 25 ton, stainless steel, IP68, 2 mV/V, 700 ohm, OIML R60
• Part #161226 — Load Cell, CSR RL96 30 ton, stainless steel, IP68, 2 mV/V, 700 ohm, OIML R60
• Part #161227 — Load Cell, CSR RL96 35 ton, stainless steel, IP68, 2 mV/V, 700 ohm, OIML R60
• Part #161229 — Load Cell, CSR RL96 50 ton, stainless steel, IP68, 2 mV/V, 700 ohm, OIML R60
• Part #161230 — Load Cell, CSR RL96 75 ton, stainless steel, IP68, 2 mV/V, 700 ohm, OIML R60
• Part #161231 — Load Cell, CSR RL96 100 ton, stainless steel, IP68, 2 mV/V, 700 ohm, OIML R60

Specifications

• Full Scale Output: 2.0 mV/V
• Output Resistance: 700 ohm
• Input Resistance: 800 ohm
• Material finish: Stainless steel
• Operating temperature: -10°C to 40°C
• Seal type: Welded seal, IP69K
• Safe overload: 150%
• Rated excitation: 15 V
• Combined error: 0.02%
• Insulation resistance: >5,000 megohms
• Cable length: 5 m
• Cable construction: PVC
• Cable colour code: Red = + Excitation; Black = - Excitation; Green = + Signal; White = - Signal; Yellow = + Sense; Blue = - Sense
• Warranty: One-year limited warranty
