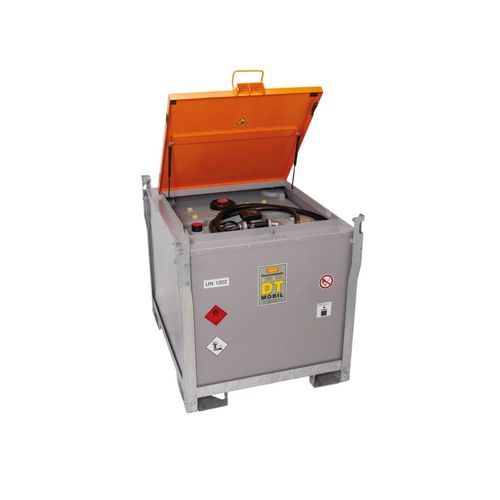

Liquid tank 11668

for dieselpolyethylenestainless steel

Description
Double-walled tank with ADR approval for transport. Periodic inspection after 2.5 years according to ADR 6.5.4.4.1 b and ADR 6.5.4.4.2 b. Transport approval for all plastic IBCs limited to 5 years. Compact construction, easy to operate.

Details

• Tank:
  • Capacity: 980 L
  • Material: polyethylene
  • Integrated collection sump
  • Optical leak indicator
  • Integrated fill neck
  • Integrated vent with overpressure valve
  • Level indicator
  • 1" withdrawal line with shut-off valve
  • Hinged lid with stainless steel closure
  • Integrated fork pockets
  • Integrated handles
  • Delivered fully assembled
• Pump:
  • Bipump 12 V, 500 W
  • Indicative flow: approx. 85 L/min (free-flow; actual flow may decrease depending on hose length and diameter)
  • Basic configuration: DN 25 delivery hose 4 m (no hose reel, meter or filter)
  • High-performance electric pump
  • Power supply via cables
• Dispensing gun:
  • Automatic dispensing nozzle
  • With mounting bracket

Approval and safety notes
ADR approval for transport. Periodic inspection after 2.5 years per ADR; transport approval for plastic containers limited to 5 years.

Dimensions and weight
1360 × 1150 × 1172 mm
Weight: 320 kg

Features / Technical specifications

• Capacity: 980 litres
• Material: polyethylene
• Dimensions: 1360 × 1150 × 1172 mm
• Weight: 320 kg
• Pump: Bipump 12 V, 500 W (approx. 85 L/min, free flow)
• Withdrawal line: 1" with shut-off valve
• Delivery hose (Basic): DN 25, 4 m
• Lid: hinged with stainless steel closure
• Integrated collection sump and optical leak indicator
• Integrated vent with overpressure valve
• Integrated level indicator
• Fork pockets and integrated handles
• Delivery: product delivered fully assembled
