Industrial use container BV500R

for big bagsfor liquidsgalvanised steel

Overview

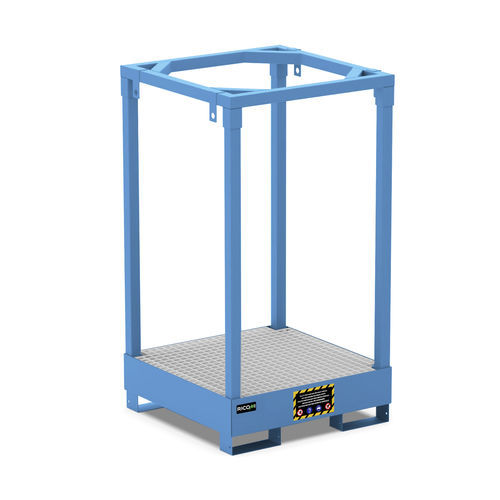

The BV500R is a steel big bag holder container designed for safe storage and handling of large bulk bags. It features a welded, leakproof retention sump with 200 L capacity to contain potential drips and leaks. The support platform is a galvanized grating and the frame consists of four uprights with an upper tubular cap fitted with four U-shaped shackles for bag strap attachment.

Construction and handling

• Retention sump welded and sealed, capacity 200 L
• Support platform: galvanized grating
• Frame: 4 uprights with upper tubular cap
• Top fittings: 4 U-shaped shackles for bag straps
• Welded lifting rings at the base for fork/stacker handling
• Base welded 10 cm above ground to allow pallet truck access
• Finish: painted Blue RAL 5012

Applications
Suitable for industrial storage, containment and handling of big bags where secondary containment for liquids or drips is required during storage or transfer operations.

Technical specifications

• Load capacity: 1000 kg
• Dimensions (L x W x H): 1000 x 1000 x 1850 mm
• Retention sump capacity: 200 L, welded leakproof
• Support platform: galvanized grating
• Material: steel (frame and sump)
• Finish: painted Blue RAL 5012
• Lifting/accessories: 4 U-shaped shackles for bag straps; welded rings for forklift handling
• Base raised 10 cm for pallet truck compatibility
• Product code (internal ref): BV500R
