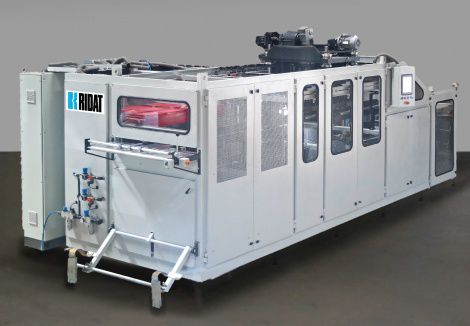

Roll-fed thermoforming machine 2416AFCS
for food packagingfor cup productionautomatic

roll-fed thermoforming machine
roll-fed thermoforming machine
Add to favorites
Compare this product


Characteristics

Type
roll-fed
Applications
for food packaging, for cup production
Operational mode
automatic
Other characteristics
vacuum
Maximum depth of draw

100 mm (4 in)

Forming area x

600 mm, 750 mm, 1,200 mm (24 in)

Forming area y

Min.: 400 mm (16 in)

Max.: 1,800 mm (71 in)

Description

Ridat's Automatic Vacuum Form-Cut & Stack AFCS machines are ideally suited to inexpensive production of vacuum formed components and clam-shells with flexible operationRidat’s AFCS-P series of Automatic Form-Cut & Stack machines is the pressure forming version of the 3 & 4 stage thermoforming machine.It provides high output operation with fine product definition of the thermoformed components produced.. Key machine features include: Robust, reliable and designed for medium to large scale production of thermoformed components Balanced heating with multi-zone PID heater control Material transport by spike chain system powered by servo drive to achieve +/- 0.3 mm accuracy High capacity vacuum reservoir and pump for instant vacuum supply 60mt servo driven steel rule punch press fitted as standard to provide greater flexibility in mould design and enables processing of newer materials (e.g. PET) Fully integrated stacking station CE MarkThe Ridat AFCS series of Automatic Thermoform-Cut-Stack machines offer comparatively larger forming area and a substantially more powerful servo driven trim press than most European manufacturers and thereby provides more flexibility with mould design and use of the newer materials like PETG.Optional features include: Additional press (24MT) Pre-oven
