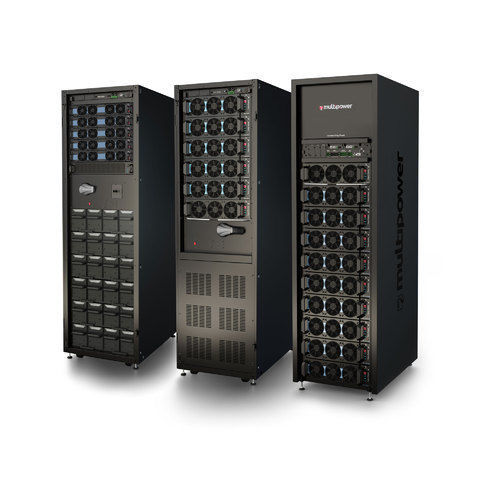

Double-conversion UPS Multi Power2

on-lineACthree-phase

HIGHLIGHTS
• Utmost availability
• Ultimate scalability
• Unmatched power density
• Efficiency up to 98%
• Multiple controls
• Highly flexible
• Advanced comms

Overview
Multi Power2 (MP2 and M2X) is the evolution of Riello modular UPS platforms, providing higher power density, simplified integration for new and existing installations, improved operational efficiency and configuration flexibility to reduce upfront investment and operational costs. The modular architecture and multiple cabinet configurations allow adaptation to load demands to avoid oversizing and deliver optimal performance across operating conditions.

Key characteristics and functionality
The Multi Power2 platform supports hot‑swappable Power Modules available in different sizes and in silicon carbide (SiC) technology to reduce cooling needs and increase power density. Power Modules can reach up to 98.1% efficiency in ON LINE double conversion. The EFFICIENCY CONTROL mode activates only the required number of Power Modules to maintain high efficiency at low loads while preserving required redundancy. The system can operate up to 40 °C without derating and supports hot‑swap insertion of modules to increase power without interrupting the load. Multiple cabinet types (rear or top ventilation) and optional integrated modular batteries are available. Main components are modular and easily replaced to minimise on‑site intervention and downtime.

Available configurations

• PCM: very compact solution with integrated manual bypass.
• PC0: unit supplied without switches to simplify integration with existing electrical infrastructure; available with top ventilation.
• PCS: fully integrated with main input, bypass, manual bypass, output switches and top ventilation for straightforward installation.
• CBC 6: compact cabinet including internal backup time, manual bypass and integrated battery switch.

Technical specifications (selected)

• Example cabinet: M2X 120 PCS
• Power module (PM) nominal power: 15 / 30 kW
• Solution nominal power (example): 120 kW
• Output power factor: 1
• Parallel capability: up to 6 systems
• PM slots: 5
• Cabinet layout example: 4+1 M2X 30 PM BLUE or 5× M2X 15 PM / PM BLUE
• Switches: Manual Bypass, DC Switch (with internal batteries)
• Input voltage: 380 / 400 / 415 V three‑phase + N (4 wires)
• Input voltage tolerance: 240–480 V (conditions apply)
• Input frequency: 50–60 Hz (tolerance 40–72 Hz)
• Input power factor: 0.99
• Total harmonic distortion (THDi):
• Rated output power: 120000 VA (120000 W)
• Batteries supported: VRLA, NiCd, Li‑Ion, Supercaps
• External modular battery cabinet: MPW 170 BTC, up to 9×4 BU strings
• Communication: 10” graphic touch screen, UPS status LED bar, 3 slots for interfaces, 10 inputs / 8 outputs
• Protection rating: IP20 finger proof
• AC/AC efficiency: up to 98.1% (PM 30 BLUE ON LINE)
• Noise (at 1 m):
• Operating temperature: 0 °C – +40 °C
• Dimensions (example): 1590 × 600 × 940 mm; weight (example): 301 kg
