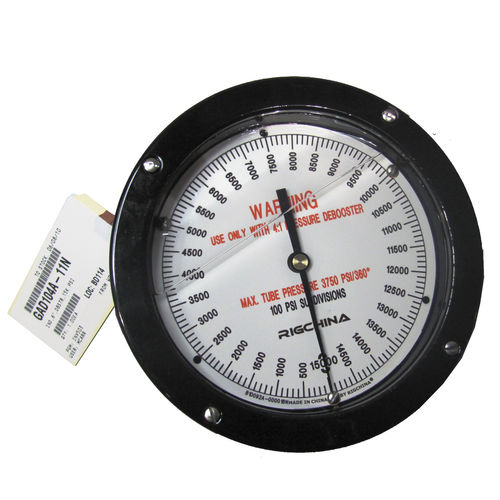

Dial pressure gauge YK-160B

threadedBourdon tube

Provides quick, accurate check on mud pump operation; helps detect washed out drill pipe or bit nozzle problems Indicator gauges can be mounted in the weight indicator box, driller's console, or locally on the mud pump Full 360° dial calibration for maximum pointer movement; shows the smallest pressure changes Fluid filled gauge has large easy to read 6" dial face and high pressure damper adjust Typically used with rugged E-17 Diaphragm Protector in Pressure Indicating Systems Hose lengths to 50 feet are standard; longer lengths available in some pressure ranges Panel Mounted Features for Single Pointer Pressure Systems: • 6" dial face on gauge • Gauge is fluid filled • Rugged durable design • Standard capacities up to 15,000 psi straight pressure and 20,000 psi deboosted Standard capacities •• 3,000, 5,000, 6,000, 10,000 and 15,000 psi •• 210, 350, 420, 700 and 1000 kg/cm2 •• 10K, 21K, 42K, 70K, 80K KPa •• 21, 35, 42, 70, 100 MPa • Available in English, Metric, or dual scale divisions • Available in box mount version (damper attached to gauge) or panel mount version (remote mount damper) • Accuracy rate of 1 percent of full capacity
