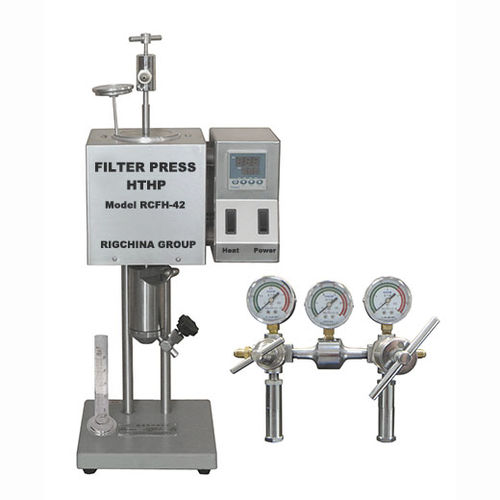

Automatic filter press HFP-42
for sludgefor laboratoriesHTHP

automatic filter press
automatic filter press
Add to favorites
Compare this product


Characteristics

Operating mode
automatic
Other characteristics
for sludge, for laboratories, HTHP

Description

The HTHP (High Temperature, High Pressure) Filter Press is designed for testing drilling fluids under elevated temperatures and pressures. The unit simulates various downhole conditions and provides a reliable method for determining the effectiveness of the material being tested. The High Pressure-High Temperature (HPHT) Filter Presses are an efficient means of evaluating the filtration properties of drilling muds at high temperatures and pressures. The cells have a filtering area of 3.5 in2 and can be operated at pressures up to 900 psi with the compact, easily attached CO2 pressuring unit provided. The Model HFP-42 Series HTHP Filter Press is equipped with a 175 mL sample cell and the working temperatures above 350°F (177°C), making it ideal for laboratory use. Also included is a regulator manifold system for connecting to bottled nitrogen for higher pressures up to1, 800 PSI (12,400 kPa The Model HFP-71 Series HTHP Filter Press is equipped with a 500 mL sample cell and the working temperatures above 500°F (260°C), making it ideal for laboratory use. Also included is a regulator manifold system for connecting to bottled nitrogen for higher pressures up to1, 800 PSI (12,400 kPa)

Catalogs

No catalogs are available for this product.

See all of RIGCHINA GROUP COMPANY‘s catalogs
