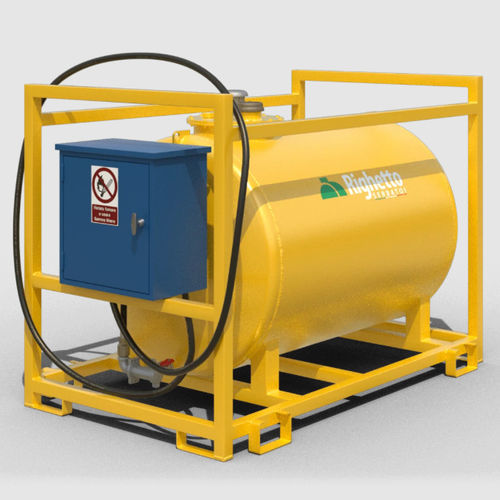

Transportable tank CD series

bulk liquidfuelcarbon steel

Fuel transport tanks, available capacity from 250 to 990 litres. Approved by the Ministry of Infrastructure and Transport pursuant to the ADR agreement on large packaging for the bulk transport of dangerous goods in liquid state, with approval issued by the Motor Vehicle Testing Center of Brescia. Each tank is tested and approved individually by an authorized certification body. Made of first choice carbon steel type EN10025 S235JR and treated externally with a layer of anti-rust and a finishing enamel. Frame made of sturdy steel tubing, protects the tank from possible impacts during transport, lifting or in the event of overturning. Our company organizes the GIR periodic audit service cyclically in accordance with the ADR regulation. Technical features Built with vertical axis (mod. 250 lt / 310 lt / 440 lt). Submerged arc welding ensures maximum resistance. Inside the tank, complete the flow-breaking bulkhead (on horizontal models) and lifting eyebolts even when fully loaded. Made of first choice carbon steel type EN10025 S235JR Cassette dispenser: self-priming pump 40 li / min, 12 V motor, liter counter for private use with resettable partial and progressive totalizer, rubber dispensing hose d. 3/4" with pressure fittings, length 4mt, automatic nozzle with swivel fitting Internal breakwater bulkheads (in models CD710TS, CD990TS); Hatch for internal inspection Æ 350 mm.; Double-acting approved safety valve; Æ 3" loading mouth with quick lockable closure;
