Connected fire protection system BTS

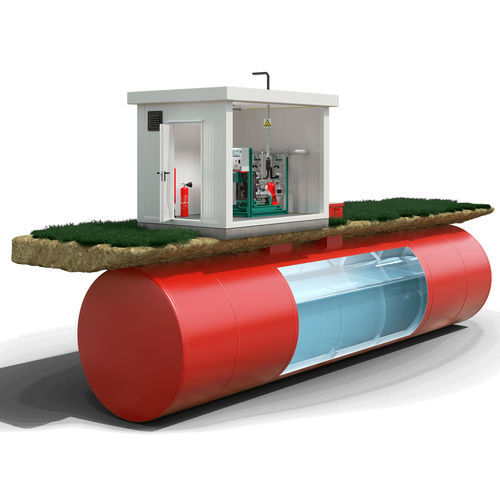

Sistema integrato conforme alle norme: UNI EN 12845/20 - UNI 11292/19-UNI 10779/21 System consisting of an outdoor box with R 60 characteristics used as a technical compartment with installation of VERTICAL AXIS pumps in subhead condition combined with an underground storage tank. Technical features Pre-assembled group on a single base, or in a modular version depending on the model, composed of a main electric pump with vertical axis and axial flow (vertical turbine pump) supplied separately, coupled to an electric motor, via bell with coupling, and/or to a diesel engine via 90° corner transmission with elastic or cardan joint. The power of the motors is calculated to compensate for the maximum absorption of the pump along the entire operating curve. The capacities and measurements are to be considered indicative only as there may be variations and we also create tanks on request with different sizes and capacities.
