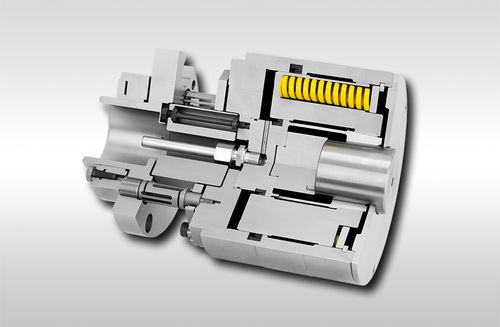

Hydraulic workpiece clamping chuck SKDZ seriespneumaticradialprinting press
Add to favorites
Compare this product
Characteristics
- Other characteristics
- hydraulic, pneumatic, radial, printing press
- Clamping range
Min.: 40 mm
(1.57 in)Max.: 70 mm
(2.76 in)
Description
pneumatically or hydraulically released
for printing rollers in printing presses
Features
High true running accuracy
High torsional rigidity
High axial rigidity
Extended insertion depth
Compensation up to 0,5 mm for radial misalignment
Compensation for angular misalignment
Catalogs
SKDZ series
2 Pages
