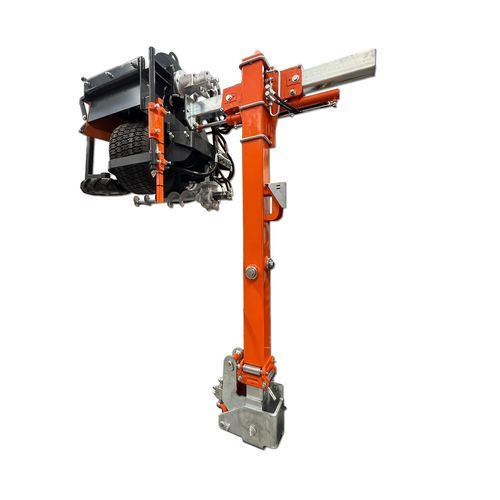

Chipper shredder SVC K1 series

SVC Vine Catcher , Cane Eater for Guyot vineyard that removes and chops shoots, saving time and labour. Built in collaboration with the German company Hess Landmaschinen, the machine consists of a central frame to which the shredding head is connected. This consists of an auger that lifts the shoots, previously cut, towards the two rubber wheels and the chopping machine that chops them, letting the residues fall to the ground. The machine can also be fitted with the automatic opening system "sensing" on the pole. The main advantage of the SVC over other similar machines is the low load on the wire ropes. KRIPTON PLUS FRAME + Hydraulic distributor 4+1 Hydraulic lifting cm 80 Hydraulic tilting vertical frame +/-10° Hydraulic side shift cm 70 Electro-hydraulic opening with push button and locking or automatic opening system "Sensing" Quick connection PLUS SAFETY Maximum pressure valve for motors Hydraulic stand for storage ON THE TRACTOR N.2 double-acting hydraulic distributor N.1 pressure free return 2x50 Liter/min
