LED floodlight HD

IP55ULimpact-resistant

Overview
The Rite-Hite™ HD-LED loading dock light is a heavy-duty, energy-efficient LED fixture engineered for abusive loading dock environments. It provides high-intensity, uniform illumination along the full length of trailers while minimizing maintenance and energy use. Food-facility-compliant materials and integrated heat dissipation improve safety and uptime.

Key Benefits

• Optimum brightness across the entire length of the trailer
• Warranted 70% light output for 50,000 hours (L70 ≥ 50,000 h)
• Energy-efficient solution with potential eligibility for energy rebates
• Built-in heat dissipation keeps the surface cool to the touch

Design

• 5 high-intensity LED emitters for broad, even illumination
• Die-cast aluminum housing with an ABS spacer ring for effective heat dissipation
• Impact-resistant clear acrylic cover that meets food-facility "no-glass" requirements
• Heavy-duty construction designed for abusive dock applications

Maintenance & Upgrades

• Eliminates incandescent/fluorescent bulb replacement and associated clean-up
• Upgrade kit available to minimize installation time by reusing existing arms

Gallery notes

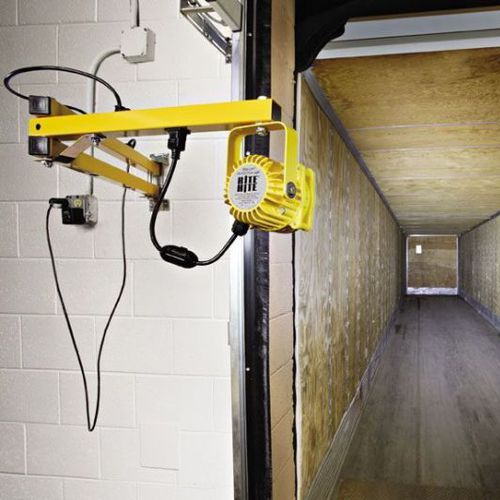

Product images illustrate multiple installation orientations and close-ups of the emitter arrangement, acrylic cover and mounting arms.

Specifications

• Model: HD-LED
• Power: 15 watts
• LED emitters: 5 high-intensity LEDs
• Rated life: L70 ≥ 50,000 hours
• Light output warranty: 70% output warranted for 50,000 hours
• Ingress protection: IP55
• Arms: Heavy-duty 14 gauge, 1 1/2" (38 mm) square steel arms
• Cover: Impact-resistant acrylic (meets food-facility no-glass requirements)
• Finish: Safety yellow powder coat
• Construction: Die-cast aluminum housing with ABS spacer ring for heat dissipation
• Certifications/Approvals: Non-corrosive, UL listed
• Intended application: Loading dock illumination for trailers; designed for abusive applications
• Warranty: 5-year limited warranty
