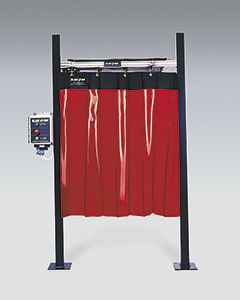

Fabric curtain SlideAir™

foldingsliding

Overview
The SlideAir Automated Safety Curtain is designed to improve safety and reduce or eliminate process-driven hazards in manufacturing applications. The pleated curtain design provides minimal storage area and the system is pneumatically operated and automated to the process, offering a safe and economical solution for many manufacturing uses.

Applications

• Used in conjunction with light curtains, area scanners or safety mats to provide separation and containment of process-driven hazards.
• Contains application-driven hazards such as weld flash/sparks/smoke, mist, flying debris and other exposures.
• Ideal where separation and containment are required while maintaining process automation.

Productivity & Safety

• Automated to the process to reduce operator fatigue.
• Increases productivity by providing a clear visual that operator should be on task.
• Proven, safe, reliable design that guards machinery and protects employees.
• Contains weld flash/sparks/smoke, mist, flying debris and other exposures to improve operator safety.

Design & Features

• Pleated curtain reduces storage space when in the open position (example: a 120" / 3048 mm wide opening can store in a 21" / 533 mm space).
• 1" (25 mm) bore rodless cylinder designed for millions of cycles to reduce maintenance costs.
• Maximum open and close speed up to 24" per second (0.6 m/sec) for increased productivity.
• Optional vertical supports (two) or single cantilevered support available for space considerations.
• Adjustable air pressure controlled speed for different applications.
• Custom 2" x 4" (50 mm x 101 mm) aluminum extrusion for easy mounting and rigidity.
• Comes fully assembled.
• Limited one year warranty.
• Fabric choices selected to resist application-driven hazards.

Benefits Summary

• Automated to the process, improving ergonomics and reducing fatigue.
• Contains and separates hazards to protect workers and equipment.
• Pleated, space-saving curtain design suitable for constrained mounting/storage spaces.
• Rugged construction and field-proven pneumatic sliding mechanism.

Specifications

• Model/Name: SlideAir™
• Operation: Pneumatically operated sliding (rodless cylinder)
• Rodless cylinder bore: 1" (25 mm)
• Max open/close speed: 24"/s (0.6 m/s)
• Example storage: 120" (3048 mm) opening stores in approximately 21" (533 mm)
• Extrusion: Custom 2" x 4" (50 mm x 101 mm) aluminum extrusion
• Supports: Optional dual vertical supports or single cantilever support
• Warranty: Limited one year warranty
• Delivery: Comes fully assembled
