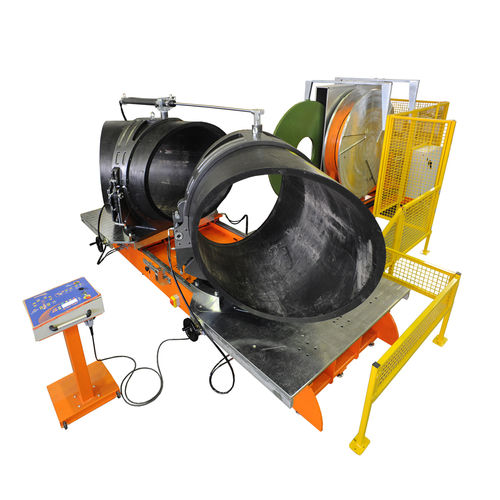

Butt welding machine ALFA 48"

automaticCNC

ALFA 48" is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws. Elbows Ø 24" IPS ÷ 48" IPS Tees - Crosses - Wyes Ø 24" IPS to 36" IPS Composed of: - A machine body with two hydraulically controlled carriages - A control panel that features the CNC system, thanks to this would eliminate any risk of error due to the operator. Possibility to pre-set 20 customized. The CNC incorporates a data-logging that can store up to 4000 cycles. It is possible to download the report PDF via USB slot - A Teflon-coated heating plate with electrical movement (in/out) on spherical bearings guides - A milling cutter with electrical movement (in/out) on spherical bearings guides, operated by an electrical engine - An upper cylinder, to be positioned on the jaws, for welding extra thick pipes and/or whenever it is necessary to apply high pressures. STANDARD COMPOSITION - Machine body with control panel CNC - Elbows jaws Ø 48" IPS complete with inserts from Ø 24" IPS to Ø 36" IPS - Heating plate - Milling cutter - Upper cylinder and service tools ON REQUEST (ACCESSORIES) - Wyes - Tees - crosses jaws Ø 36" IPS with inserts
