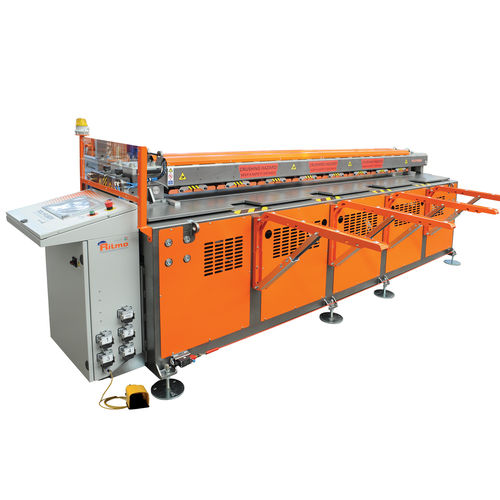

Butt welding machine Polyfusion 4

PLC-controlledfor the plastics industrythermoplastic sheet

POLYFUSION 4 Pneumatic sheet welding machine CNC welding cycle Compliant with welding standards DVS 2207 PE (DVS 2207-1); PP (DVS 2207-11); PVC-U (DVS 2207-12); PVC-C (DVS2207-13); PVDF (DVS 2207-15) Weldable materials: sheet in PVC, PE, PP, PVDF; twin walls in PE and PP. Welding range 3 ÷ 50 mm solid wall; max 60 mm twin walls VERSATILE - Welds up to 4 mt length - Suitable for small size sheets welding - Working pressures: nominal 7 bar - maximum 8,5 bar - Type of butt fusion welding: Straight, 90 ° welding (accessory on request), T welding (accessory on request), Circular welding (accessory on request) PRECISE - High density locking clamps that provide an homogeneous pressure distribution - Led lights throughthe entire welding area - Graduated scales to set the sheet in position - Constant stabilizing pressure control - Unlimited store of welding report - Unlimited store of pre-setting parameters and possibility to recall them - Welding cycles management according to the standards or customizable Pre-set welding standards: - PE (DVS 2207-1) - PP (DVS 2207-11) - PVC-U (DVS 2207-12) - PVC-C (DVS2207-13) - PVDF (DVS 2207-15) Twin wall pre-set parameters on suggested values: PANELTIM - RÖCHLING - SIMONA COMPLETE - 4 independent welding areas - CNC welding cycle - Pre-setting store and recall parameters - PLC control panel - 12” touch screen - Remote control and analysis - Diagnostic feature - Upgradable Software via USB
