Polymer electric fusion machine JIG Prime

for industrial applications

Overview

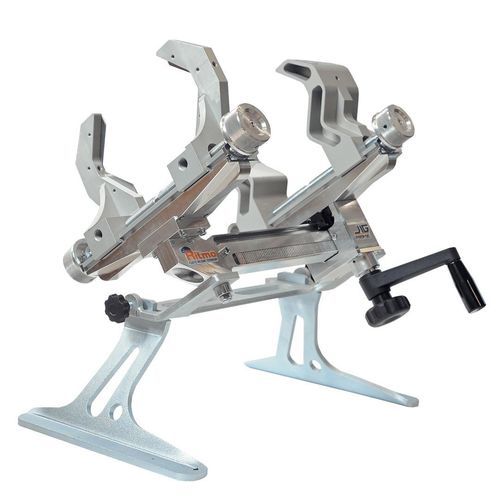

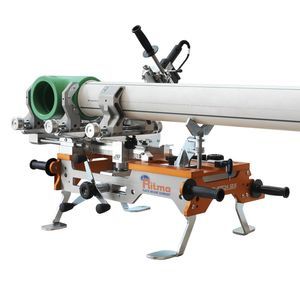

JIG Prime by Ritmo is a pipe welding machine designed for fusion of thermoplastic fittings up to Ø 25÷125 mm. Its lightweight construction and high maneuverability enable reliable on-site use, including vertical and overhead welds.

Key features

• Friction lock system: Patent-pending friction-based, lockable carriage prevents gravity-induced sliding and unintended opening, providing precise control of pressure during fusion (with multi-fusion tool and sockets) and welding phases.
• Modular support: Functional, modular support converts quickly into a bench rest to increase versatility on site.
• Precision clamping: Two self-centering clamps with side knobs secure pipe and fitting; reversible clamps and removable inserts allow operation on diameters from Ø 25 to 125 mm.
• Lightweight and balanced: Balanced design with comfortable lower handle for manoeuvrability; commercial literature highlights a weight of 8.5 Kg while technical data list 10.2 Kg (see note).

Applications

• Water distribution
• Industrial piping
• Civil engineering

Compatible materials

• HDPE
• PP
• PP-R

Technical specifications

• Working range: Ø 25÷125 mm
• Power supply: 110 V single phase 50/60 Hz; 220–230 V single phase 50/60 Hz
• Total absorbed power: 1400 W
• Operating ambient temperature: -5 ÷ +40°C (23 ÷ 104°F)
• Working temperature: 180°C ÷ 290°C (356 ÷ 554°F) ± 1%
• Time to reach welding temperature: ~ 10 s
• Machine dimensions: 506 x 332 x 259 mm
• Machine weight: 10.2 Kg (22.49 lb)
• Transport case dimensions: 555 x 437 x 326 mm
• Transport case weight: 5.88 Kg (13 lb)
• Note: Some commercial materials indicate a machine weight of 8.5 Kg as a reference to manoeuvrability.
