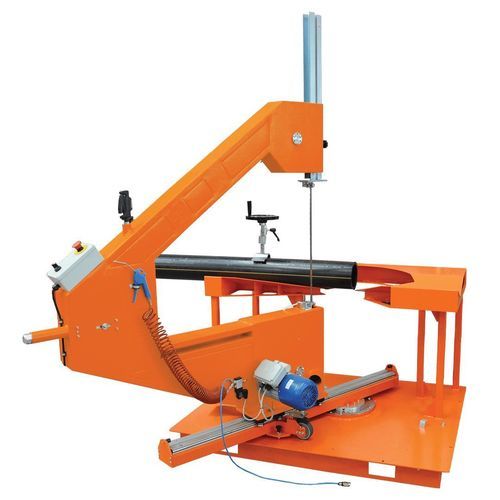

Motorized pipe cutting and beveling machine Sigma 500 PRO

stationary

Product overview
SIGMA 500 PRO is a pipe and profile cutting machine designed for industrial applications. Compact footprint with the ability to perform straight and angled cuts from −45° to +67.5° on pipes, corrugated and spiral pipes in HDPE, PP, PVDF, PVC (up to Ø 500 mm) and fiberglass.

Key features

• Logistical handling by forklift; lateral movement for cutting angles via wheels with a locking device for fast, precise positioning; routine maintenance is straightforward.
• Specific blade kit available for PP-RTC pipes (referenced for this machine).
• Safety-focused design: clear visibility of the cutting area while keeping operators at a safe distance; feed knob fitted with a safety micro-switch that stops the blade immediately if released.
• Integration-ready: can be incorporated into the production line for special fittings with ALFA-series welding machines to produce elbows, tees and crosses from pipe sections.
• Multiple power supply options to match different plant configurations.

Application sectors

• Pipes
• Sheets

Application materials

• PVC
• FIBERGLASS
• HDPE
• PP
• PVDF

Accessories

• Pipe support table
• Blade kit for PP pipes / fiberglass

Technical specifications
Working range: 60 ÷ 500 mm (straight cut 0°); 90* ÷ 500 mm (*with auxiliary bench for Tee cutting)
Cutting angles: −45° ÷ +67.5°
Power supply options: 400 V 3~ 50/60 Hz; 230 V 3F+N+PE 50/60 Hz; 230 V 1~ 50/60 Hz
Total absorbed power: 860 W
Dimensions: 2433 x 3105 x 2333 mm (95.7” x 122.2” x 91.8”)
Weight: 340 kg (749.5 lb)

Included items and options

• Standard: auxiliary bench for Tee cutting
• Optional: blade kit for PP-RTC pipes (on request)
• Optional accessories: pipe support table; kit for PP and fiberglass
