absolute rotary encoder / analog / digital / parallel
RIVERT

{{requestButtons}}

Characteristics

  • Type:

    absolute

  • Output signal:

    analog, digital, parallel

  • Construction:

    single-turn

  • Protection level:

    ultra-rugged, harsh environments

  • Other characteristics:

    high-accuracy

Description

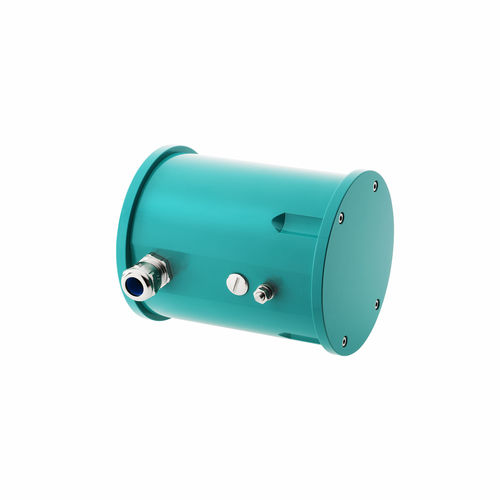

Optimal water supply regulation without additional gear or linkage – the RIVERT and RIVERT smart absolute encoders deliver high precision angle measurements.

For almost 40 years, Rittmeyer has been developing absolute encoders that provide reliable measurements even in harsh environments. The absolute position is available immediately after power-on. Their comprehensive backwards compatibility ensures maximum investment protection: Even nearly 40-year-old predecessor devices can be migrated to the newest generation easily. Depending on the type, the encoders differ in the number of inputs and outputs and available communication interfaces.

Measuring range 0 ... 360°, accuracy ± 0.044°
Integrated process value calculations (limit values, linearization)
Cable connection with cable glands
1 analog output with HART® (fully implemented)
4 digital outputs (optional)
1 status output
Parallel code outputs (BCD, Gray, binary) on up to 22 digital outputs (optional)
