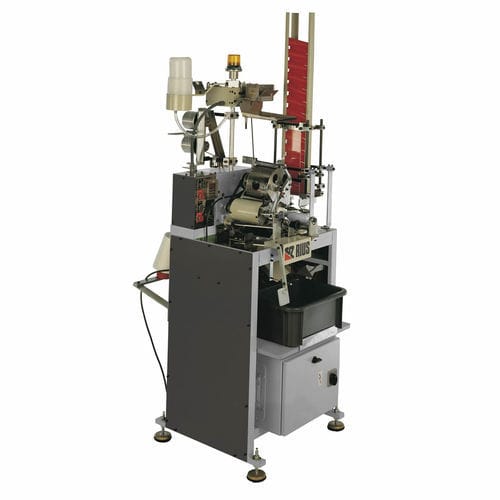

Cable winding machine SERIE JM

yarnautomaticsemi-automatic

Automatic and semi-automatic bobbin winders with a wide range of possibilities. Used in the sewing yarn industry, embroidery machines and general winding Technical characteristics: Number of head: 1 Individual head for a higher flexibility of change and yarn size adjustment. Precision winding. Winding adjustment mechanism. Progressive tension lowering and yarn pressure. Automatic system by cable and cam. Automatic cycle change of 8 seconds (automatic model). Including: • Measuring system with electronic pre-selection meter counter. • Motor of 0.25 kW. Three phase or mono phase. • Liquid Paraffin device. • Hidden initial yarn device. • Winding speed: 7.500 r.p.m. • Maximum diameter of the bobbin: 110 mm. / 150 mm. • Available traverse from 20 mm. up to 115 mm./ 150 mm. • Simple mechanism and perfect winding. • Automatic cone change • Automatic stop in case of yarn breakage or end of cones • Automatic stop when cone reach the pre-selected diameter. • Types of yarns: cotton, polyester, natural or man made
