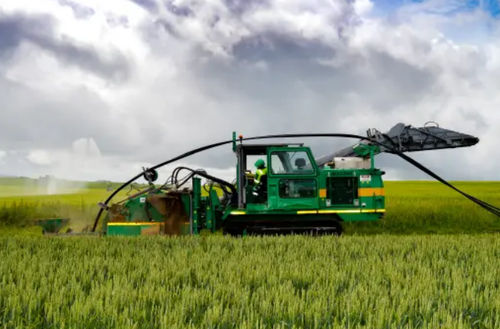

Wheel trencher RIV1255
tracked

wheel trencher
wheel trencher
wheel trencher
wheel trencher
Add to favorites
Compare this product


Characteristics

Type
wheel
Locomotion
tracked

Description

The RIV1255 is the ideal trencher for the deployment of networks under pavements or at the edge of the roadway thanks to its 400 mm offset. This compact and efficient trencher is also versatile thanks to its two TR104A and TR110T wheels, allowing the loading of materials, the unwinding and the mechanized laying of all types of networks. Thanks to this RIV1255, your network installation can be done in one go. RIV1255 : Carrier RIV1255 Engine VOLVO 252hp Fuel tank 300l Hydraulic tank 280l Ad blue tank 25l Total weight of the set : 15 500kg Offset track foot Right Working dimensions (without conveyors): With TR104A : 10,5m x 2,3m x 4,35m With TR110T : 10,2m x 1,7m x 3,2m Dimensions of equipment in transport, without conveyors : With TR104A : 9,7m x 2,3m x 3m With TR110T : 9,2m x 1,7m x 3m Carrier speed : Slow (working) 0 to 750 m/h Medium (working) 0 to 1 400 m/h Fast (moving) 0 to 3 000 m/h Trench width : 120 to 280mm (6 or 8 bolted elements according to trenching tool) Trench depth: up to 1 100mm
