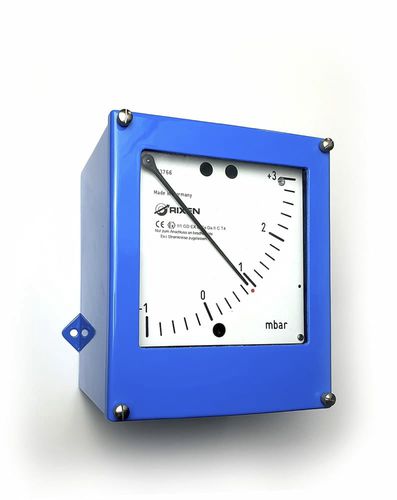

Dial pressure gauge RW65_EX_IIdifferentialwall-mountedsteel
Add to favorites
Compare this product
Characteristics
- Display
- dial
- Pressure type
- differential
- Mounting
- wall-mounted
- Material
- steel
- Communication
- 4-20 mA
- Protection level
- ATEX, intrinsically safe, IP65
- Applications
- for gas
- Other characteristics
- precision, low-pressure
- Pressure
Min.: -1,800 Pa
(-0.26 psi)Max.: 1,800 Pa
(0.26 psi)- Precision
1.5 %
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description
Ringbalance with built-in intrinsically safe 2-wire 4-20mA loop current transmitter.
Approved according to ATEX II 1 GD Ex ia IIC/IIIC T4 Ga Da for all ex-zones.
Housing steel/brass in RAL5015 or stainless steel.
Supply via intrinsically safe power supply unit
RW65_EX_II: Ringbalance for draft, pressure, differential pressure to be mounted in the hazardous area, Ex-zone 0,1,2,20,21,22.
– Display large display 150 x 150 mm (6″ x 6″)
– Scale Units Pa, kPa, daPa, mbar, mmWS, mmCE, in.W.C.
-Measuring Pickup Magnetic field sensor; non-contact and with infinite resolution
