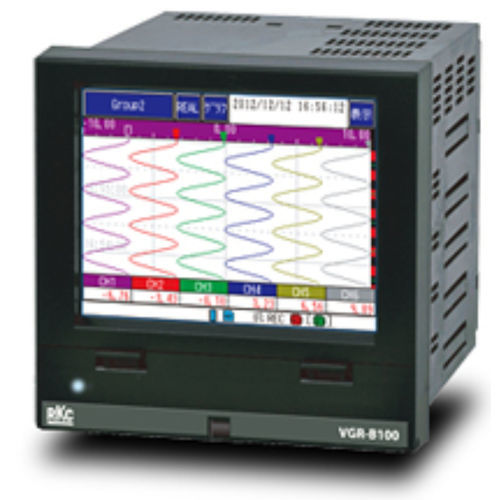

Paperless recorder VGR-B100

temperature3-channelwith touchscreen

Max.12 points (in the recorder) and additional 36 points of inputs (external devices connected via Modbus Master), total 48 inputs Ethernet is supplied as standard Extended security (21 CFR Part 11, Optional) Pressing the REC button starts recording. Data is stored into the SD card. With the supplied software, the recorded data can be easily viewed and managed. Via an external remote AI device (optional) and MODBUS master function, external controllers can be connected to the recorder, enabling a maximum of 48 channel recording. Access limit:　Only users whose account is registered can operate the recorder with this option. Audit trail:　Operation history such as change of set values, recording start/stop and so on is automatically recorded. Electronic signature, Signature data output: 　Both trend and instantaneous values with electronic signature data can be printed out. Data falsification and damage are detected: 　Viewing detected data will be limited.
