Marking machine with rotary table MODULA EVO ROTANTE
fiber laserCO2 laserpulsed fiber laser

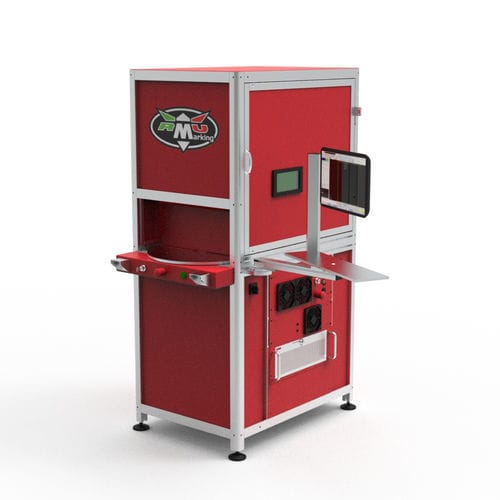

Marking machine with rotary table - MODULA EVO ROTANTE - RMU Marking - fiber laser / CO2 laser / pulsed fiber laser
Marking machine with rotary table - MODULA EVO ROTANTE - RMU Marking - fiber laser / CO2 laser / pulsed fiber laser
Marking machine with rotary table - MODULA EVO ROTANTE - RMU Marking - fiber laser / CO2 laser / pulsed fiber laser - image - 2
Marking machine with rotary table - MODULA EVO ROTANTE - RMU Marking - fiber laser / CO2 laser / pulsed fiber laser - image - 3
Add to favorites
Compare this product


Characteristics

Technique
fiber laser, CO2 laser, pulsed fiber laser
Material
metal, plastic, paper, wood, glass, leather, ceramic, for aluminum
Applications
industrial
Other characteristics
air-cooled, with rotary table
Power

Max.: 50 W
(0.07 hp)

Min.: 20 W
(0.03 hp)

Speed

6,000 mm/s

Description

The lasers of the Modula line, in safety class 1, are aimed at companies that have particular marking needs: projects that involve the production of thousands of components per month, with partially automated processes and marking of large pieces. They can mount Fiber or Co2 sources. Laser equipped with rotary table (available in version with 500mm, 800mm or 1200mm diameter). When marking, the operator can load the parts on the other side of the table to reduce production time. SOURCE: 20 - 30 - 40 W AREA: 110x110 MM - 175x175 MM TABLE: 500 - 800 - 1200 MM COOLING SYSTEM: AIR DOOR: AUTOMATIC + MANUAL MOTORIZED AXES: Z
