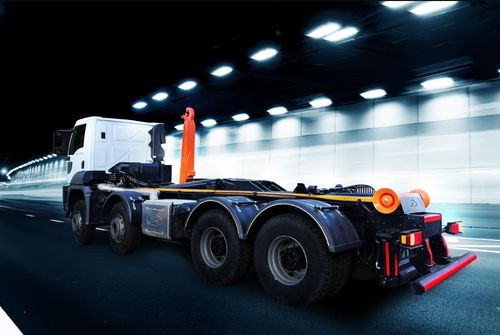

Truck hook lift

• From 3.5 ton to 30 ton hooklift capacity • Main Boom St-52(S355JR) / 14mm • Boom Housing St-52(S355JR) / 14mm • Hook Boom St-52(S355JR) / 14mm • Chassis St-52(S355JR) / 8mm • Hydraulic Command 3/4’’ block – 120litre/min. • Hydraulic Cylinder Bore: The dimensions of the cylinders are designed to realize the prescribed cycle times and compression ratio. It complies with DIN 2391 C Norms. • Hydraulic Oil Pump : 68-85litre/minute, 1000 rpm – PTO Activated • Control System: Manual system • Hydraulic Valve: Well quality Turkish origin • Hydraulic Oil Tank: Equipped with return filter, tank lid and oil indicator. • P.T.O.: Controlled inside the cab, original P.T.O of the Truck • Painting: All steel parts surface free of rust and oil residue by sand blasting, then will be applied with two primers, completely final painted according to desired color / RAL code • Ladder: One piece located in right side of the truck • Stop Light: 2 units • Tool box: 1 unit • Stabilizer Leg: 2 Hydraulic Cylinder connected to a rollerv
